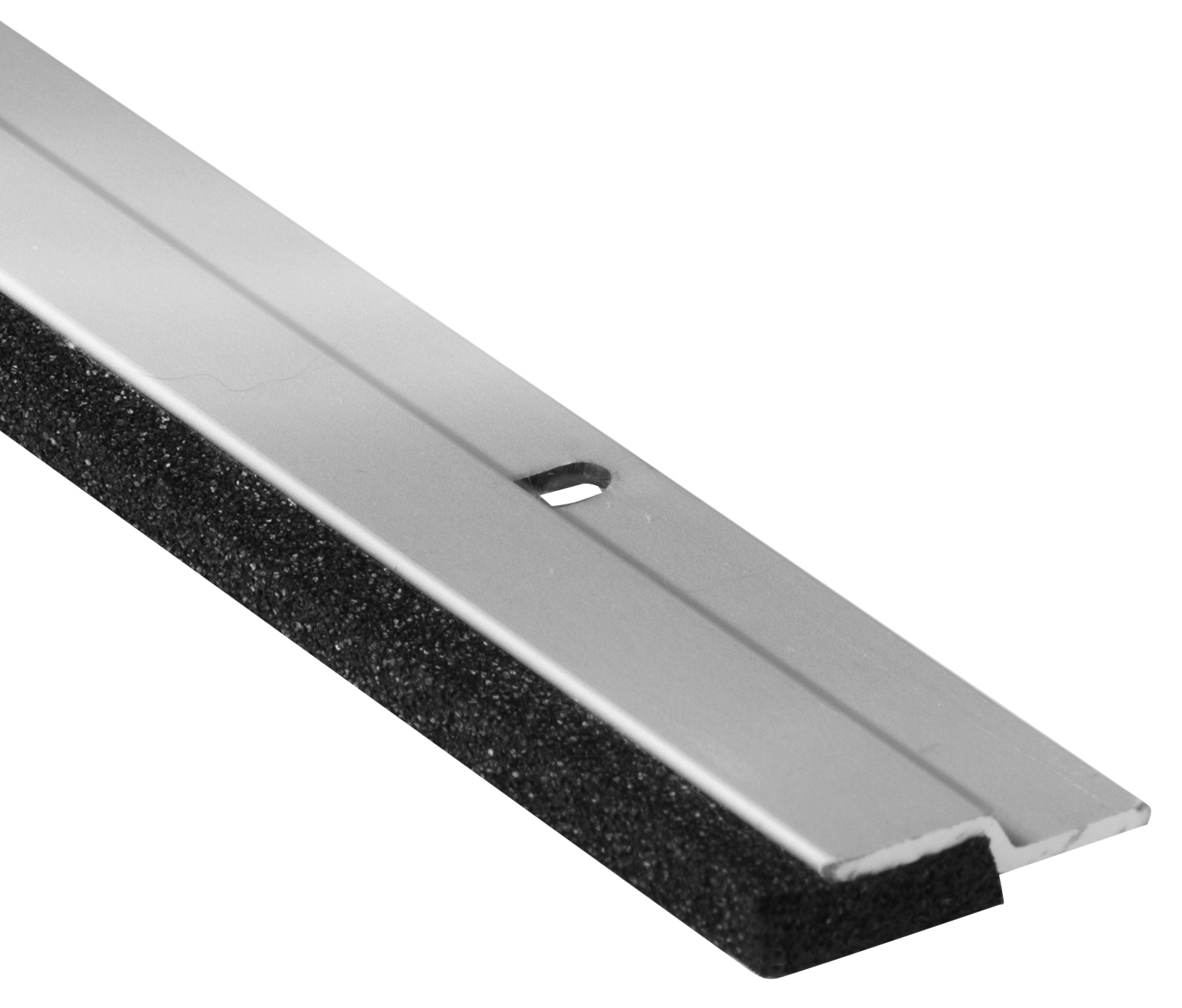

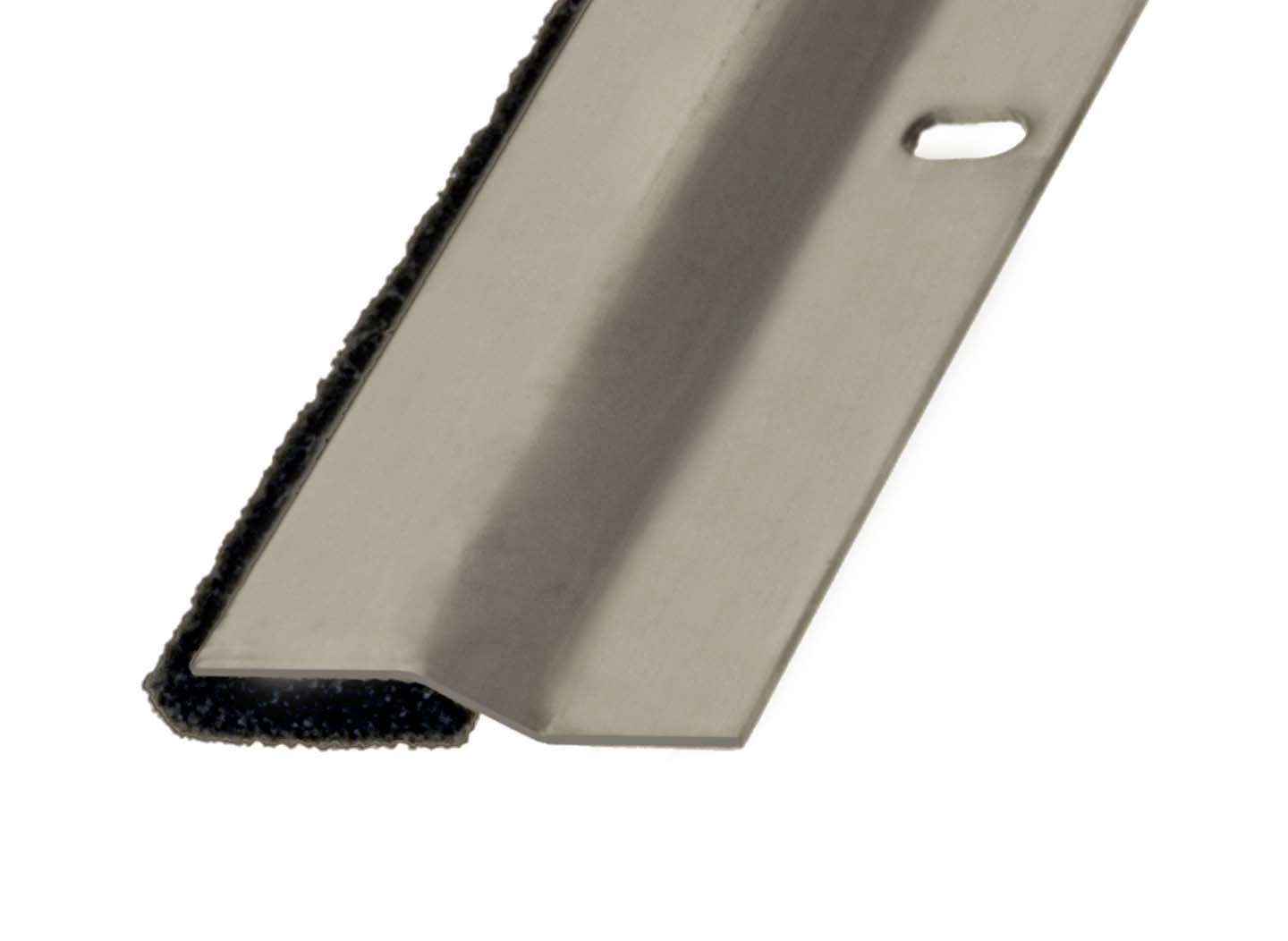

NGP 127SSS 36" Stainless Steel Silicone Perimeter Seal offers a reliable solution for enhancing the efficiency of commercial restroom partitions. Crafted from durable stainless steel type 304, this perimeter seal features a synthetic rubber polymer made of Siloxane closed cell sponge, ensuring excellent flexibility and memory over time. Designed to withstand extreme conditions, the NGP 127SSS remains flexible in temperatures ranging from -100°F to 500°F, making it ideal for various environments. Its flame-resistant and moisture-resistant properties provide added safety, especially in areas utilizing FM200 or Halon Fire Suppression Systems. The seal is BHMA Certified to ANSI/BHMA A156.22 performance standards, ensuring its capability to handle heat and cold effectively. Additionally, it boasts excellent resistance to ozone, UV light, and aging, ensuring a long-lasting performance. The brushed #4 finish (US32D, 630) gives it a sleek, professional appearance, while the black silicone complements a variety of designs. With slotted screw holes for easy adjustment, the NGP 127SSS is a practical choice for building professionals and knowledgeable homeowners looking to enhance the functionality and safety of their restroom facilities.
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Brushed #4 finish (US32D, 630)
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 36.0"
Material: Synthetic rubber polymer: Siloxane closed cell sponge
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
