NGP 137NDKB (SET) 60" DKB-finish Aluminum Neoprene Smoke-Rated Astragal offers a robust solution for fire-rated door applications. Constructed from high-quality Aluminum Alloy 6063 with T5 temper, this astragal is designed to withstand the rigors of daily use while providing exceptional protection. The synthetic EPDM rubber in a polypropylene thermoplastic matrix ensures very good abrasion resistance, tensile strength, and memory, making it suitable for a variety of environments. Certified by UL for fire safety, this astragal complies with IBC, NFPA 80, NFPA 105, and NFPA 252, ensuring a gap of no more than 1/8" at the meeting edge between fire-labeled doors. Its temperature range of -81°F to 275°F, coupled with good resistance to ozone, sunlight, and aging, makes it ideal for diverse conditions. The dark bronze finish adds a sleek aesthetic, while the provided #6 x 3/4" stainless steel SMS fasteners facilitate easy installation with slotted screw holes for adjustment. This set includes two pieces, ensuring comprehensive coverage for your door needs. Whether for new installations or replacements, the NGP 137NDKB is an essential component for maintaining safety and functionality in commercial restroom environments.

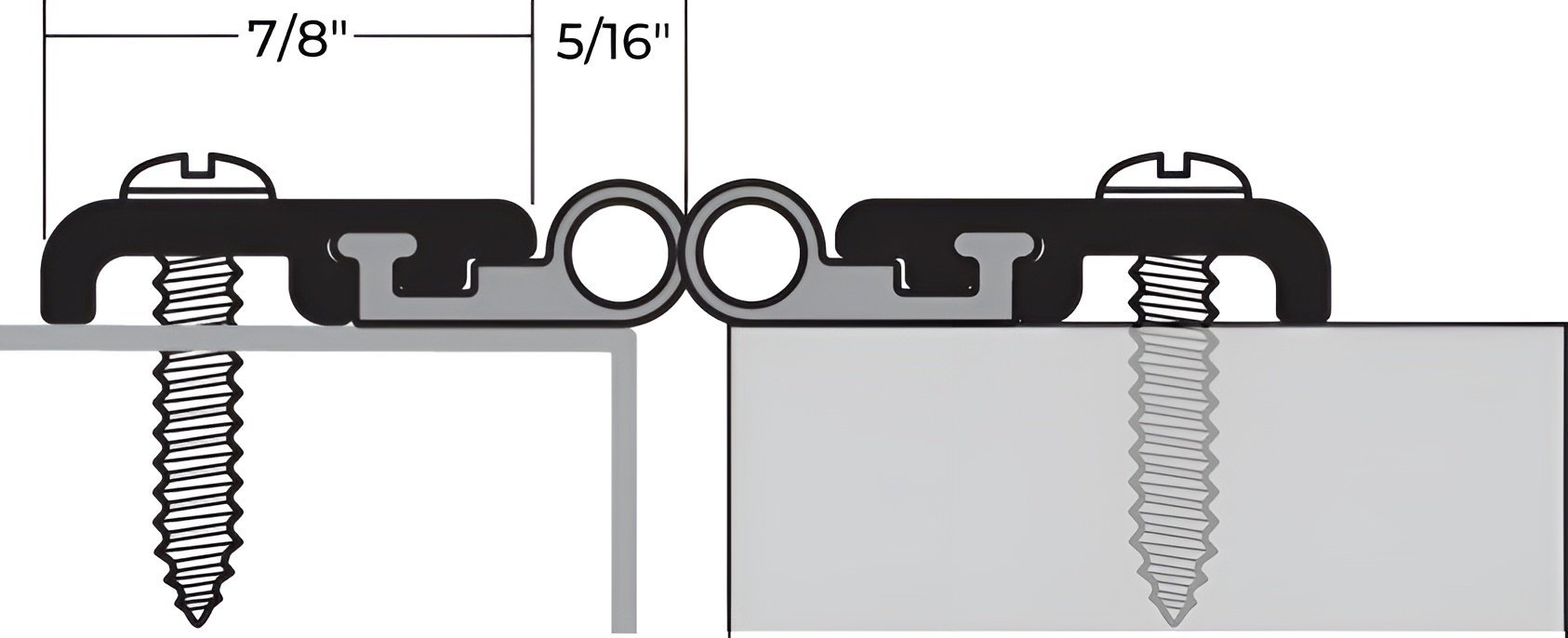

60" DKB-finish Aluminum Neoprene Neoprene Smoke-Rated Astragal
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8"
Length: 60.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature Range -81°F to 275°F
