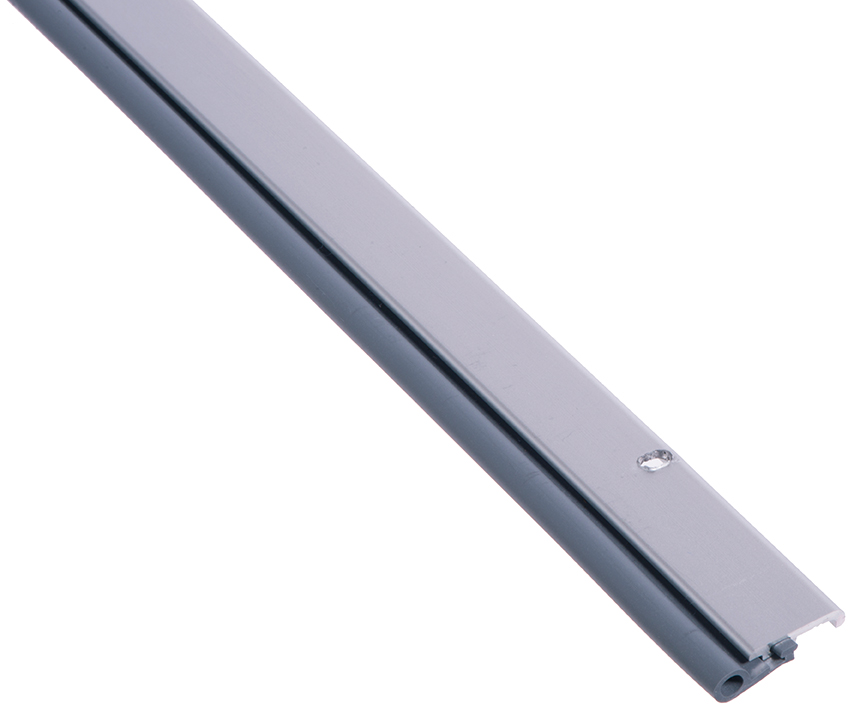

NGP 137SA (SET) 72" Anodized Aluminum Silicone Smoke-Rated Astragal is designed for superior performance in commercial restroom environments. Constructed from durable aluminum alloy 6063 with a T5 temper, this astragal boasts excellent flexibility and memory, ensuring it maintains its shape and function over time. The synthetic rubber polymer, Siloxane, provides flame and moisture resistance, making it ideal for areas using FM200 or Halon Fire Suppression Systems. This smoke-rated astragal can endure extreme temperatures ranging from -100°F to 500°F, remaining flexible in harsh conditions. It also offers outstanding resistance to ozone, UV rays, and aging, ensuring long-lasting durability. The product meets stringent fire safety standards, including IBC, NFPA 80, NFPA 105, and NFPA 252, ensuring the gap at the meeting edge of fire labeled doors does not exceed 1/8". Each set includes two pieces, and installation is made simple with #6 x 3/4" stainless steel sheet metal screws provided, featuring slotted screw holes for adjustment. The anodized aluminum finish adds an attractive touch while providing robust performance. Choose the NGP 137SA astragal for reliable and effective smoke and draft control in your restroom partition systems.
Attributes
Application: Excellent flexibility and memory
Color: Silicone is gray
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Fire Rated: IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"
Length: 72.0"
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
