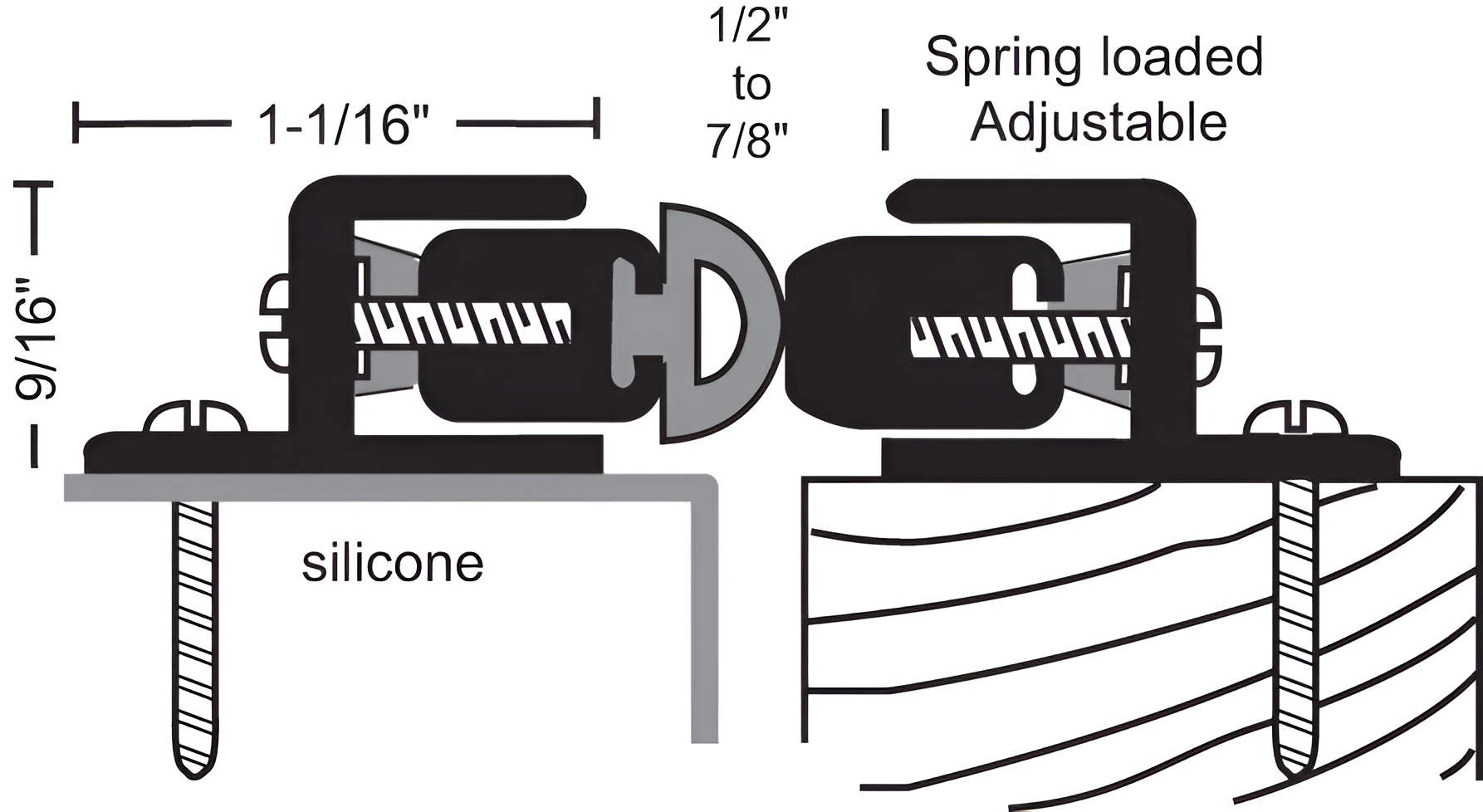

NGP 140SA (SET) 96" Anodized Aluminum Spring Loaded Silicone Astragal features a robust construction of aluminum alloy 6063 with a T5 temper, ensuring durability in commercial environments. This product incorporates a synthetic rubber polymer, Siloxane, which offers excellent flexibility and memory, even under extreme conditions ranging from -100°F to 500°F. Designed for high-performance sealing, the spring-loaded mechanism maintains constant pressure to ensure an effective seal against moisture and drafts. The silicone component is black, providing a sleek appearance that complements various restroom aesthetics. Additionally, this astragal is flame resistant and boasts excellent resistance to ozone, UV, and aging, making it a reliable choice for areas equipped with FM200 or Halon Fire Suppression Systems. Certified by BHMA to ANSI/BHMA A156.22 performance tests for heat and cold, the NGP 140SA is a trusted option for ensuring safety and compliance in commercial spaces. The adjustment screws located on 10" centers allow for easy seal adjustments without the need to reposition the mounting location. This two-piece set is designed for straightforward installation, making it an ideal choice for building professionals seeking reliable restroom partition hardware.
96" Anodized Aluminum Spring Loaded Silicone Astragal
Ship via: No UPS - Common Carrier Only
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Finish: Anodized aluminum
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
