NGP 151S (SET) 96" Mill Aluminum Astragal with Silicone Seal is engineered for durability and performance in demanding environments. Constructed from high-quality aluminum alloy 6063 with T5 temper, this astragal is designed to withstand extreme conditions, boasting a temperature range of -100°F to 500°F while maintaining flexibility. The included synthetic rubber polymer, Siloxane, enhances its moisture resistance and flame resistance, making it an ideal choice for areas utilizing FM200 or Halon Fire Suppression Systems. This product features excellent flexibility and memory, ensuring it maintains its shape over time. The BHMA-certified design meets ANSI/BHMA A156.22 performance tests for heat and cold, providing peace of mind regarding its reliability. With a mortise dimension of 7/32" wide x 1/2", the NGP 151S is suitable for a variety of applications. Each set includes two pieces, and the maximum length available is 108". The sleek black silicone seal complements the mill aluminum finish, ensuring a polished look. Please note that shipping may incur additional fees for items exceeding standard package sizes. Trust NGP for high-quality restroom partition hardware that meets your professional needs with style and performance.
96" Mill Aluminum Astragal with Silicone Seal
Ship via: No UPS - Common Carrier Only
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black

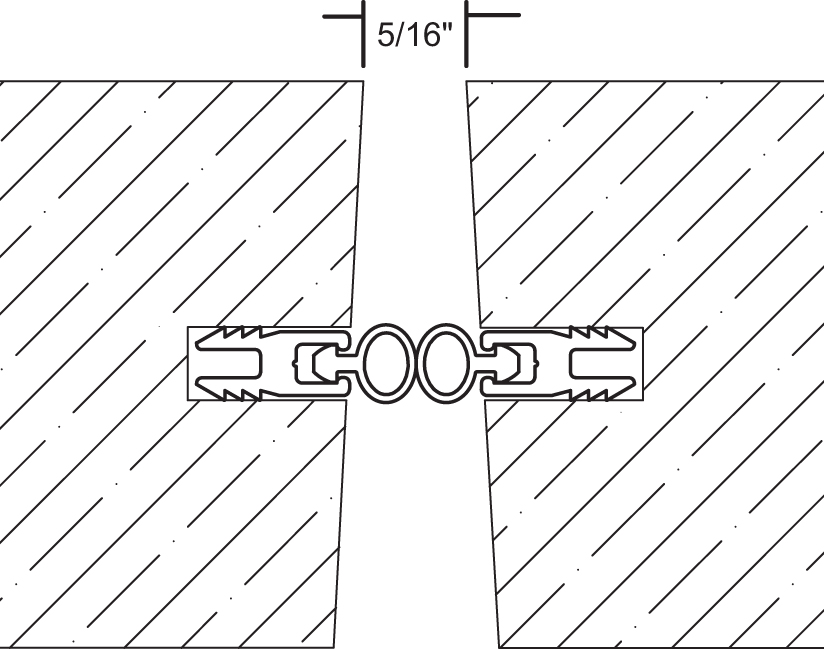

Dimensions: Mortise dimensions 7/32" wide x 1/2"
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Mill aluminum
Maximum Length: Maximum length 108"
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-1: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
