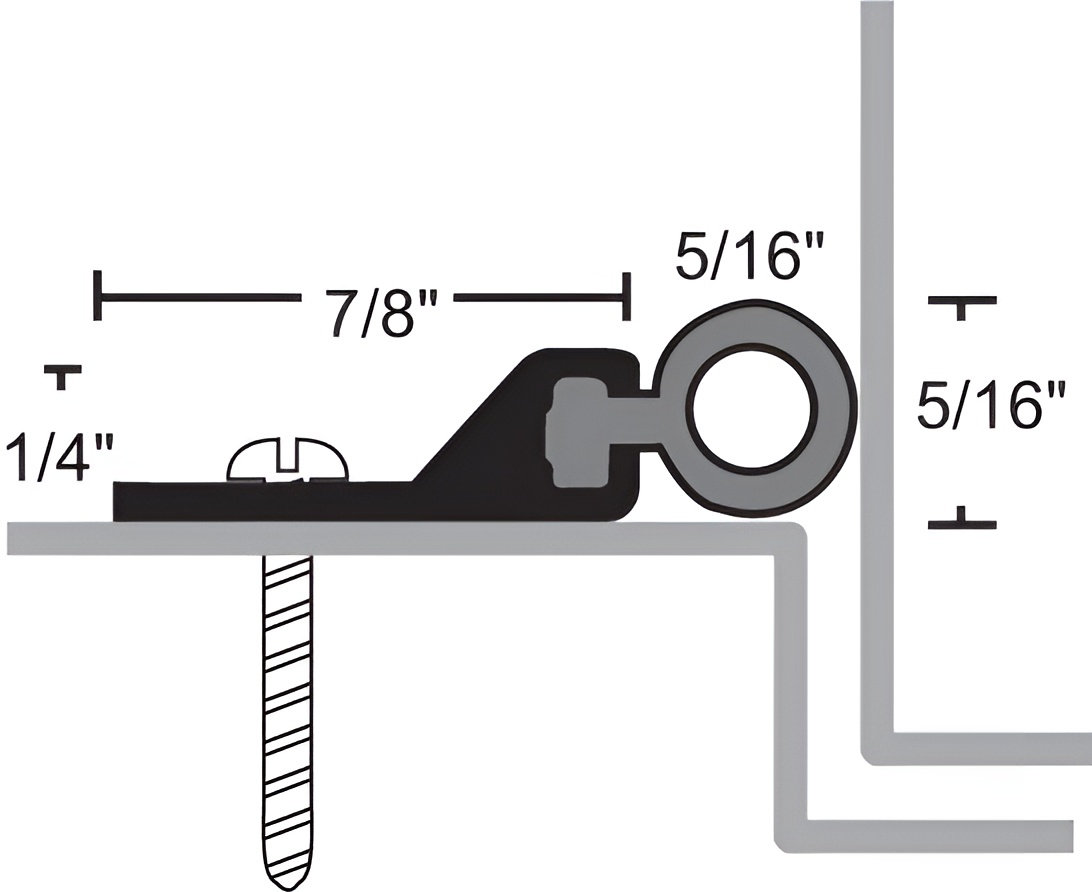

NGP 156SDKB 48" Mill Aluminum Silicone Dense Bulb Perimeter Seal offers an exceptional solution for maintaining the integrity of your commercial restroom partitions. Constructed from Aluminum Alloy 6063 with a T5 temper, this durable seal features a dense silicone made from synthetic rubber polymer, Siloxane, ensuring excellent flexibility and memory. Its flame-resistant and moisture-resistant properties make it suitable for diverse environments, while it remains flexible in extreme temperature ranges from -100°F to 500°F. Designed to withstand the rigors of daily use, the NGP 156SDKB boasts excellent resistance to ozone, UV light, and aging, ensuring longevity and reliability. This perimeter seal is BHMA certified to ANSI/BHMA A156.22 performance tests, making it ideal for applications utilizing FM200 or Halon fire suppression systems. Installation is made easier with #6 x 3/4" stainless steel sheet metal screws included, and the slotted screw holes allow for adjustment during fitting. The sleek dark bronze finish complements any restroom décor, while the black dense silicone provides a modern touch. With a length of 48 inches, this perimeter seal is a vital component for any commercial restroom, ensuring optimal performance and safety.
Attributes
Application: Excellent Flexibility and Memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Dense Silicone is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Length: 48.0"
Material: Synthetic Rubber Polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent Resistance to Ozone, UV and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
