NGP 156VDKB 60" DKB-finish Aluminum Vinyl Perimeter Seal offers exceptional performance for commercial restroom applications. Crafted from Aluminum Alloy 6063 with T5 Temper, this perimeter seal combines durability with an aesthetically pleasing dark bronze finish. Its innovative thermoplastic polymer, formulated with an environmentally friendly bio-based plasticizer, ensures flexibility and resilience. This perimeter seal is both flame-resistant and moisture-resistant, making it ideal for various environments. It operates efficiently within a temperature range of 0°F to 140°F, ensuring reliable performance even in extreme conditions. The vinyl, presented in sleek black, enhances its visual appeal while providing a functional barrier against air infiltration, certified by UL to ANSI/UL10C. Installation is straightforward, thanks to the included #6 x 3/4" stainless steel sheet metal screws and slotted screw holes for adjustment. This perimeter seal not only meets stringent fire safety standards, being certified for use on hollow metal and wood fire doors, but also offers economical advantages without compromising quality. Choose the NGP 156VDKB for a reliable, efficient, and stylish solution to your restroom partition needs, ensuring both safety and functionality in high-traffic areas.

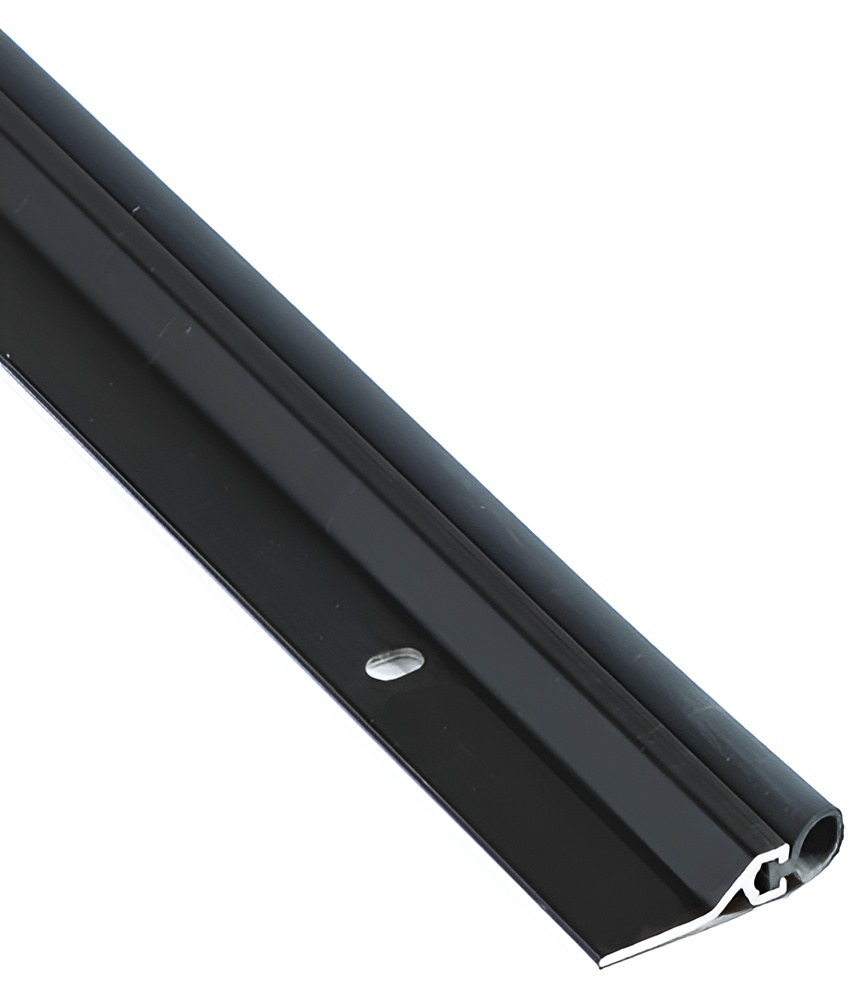

60" DKB-finish Aluminum Vinyl Perimeter Seal
Color: Vinyl is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 60.0"
Material: Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature Range 0°F to 140°F
