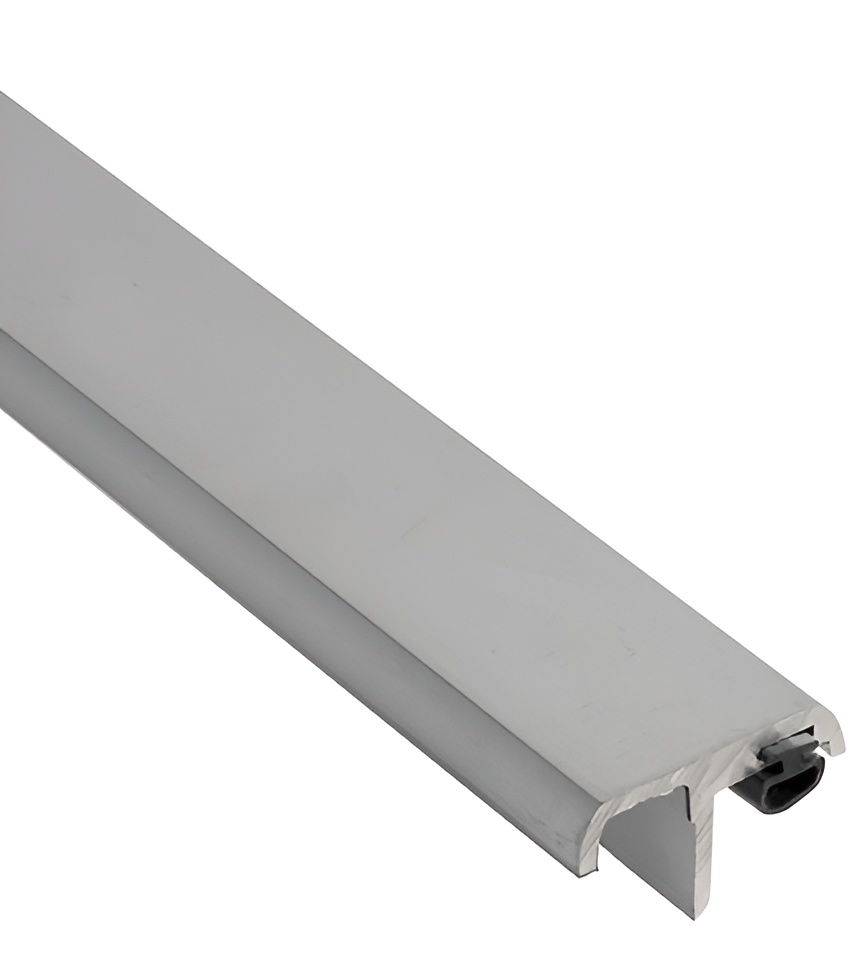

NGP 158VA 60" Anodized Aluminum Overlapping Astragal with Vinyl Seal is designed to enhance the functionality and durability of your commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 with T5 temper, this astragal offers exceptional strength and resistance to environmental stressors. The black vinyl seal, made from thermoplastic polymer (PVC) with an eco-friendly bio-based plasticizer, ensures a moisture-resistant barrier while maintaining a flame-resistant profile. This product is engineered to fit beveled edge doors and can accommodate a maximum height of 120 inches, making it a versatile choice for various installations. With the ability to withstand temperatures ranging from 0°F to 140°F, the NGP 158VA is perfect for a range of environments. Additionally, it is certified by UL for fire safety, complying with NFPA standards for hollow metal and wood fire doors. The anodized aluminum finish not only adds aesthetic appeal but also provides resistance against oxidation and wear. Each unit comes with #8 X 1" FH U/C SMS fasteners, ensuring easy installation. Choose the NGP 158VA for a reliable, economical solution that meets the rigorous demands of commercial restroom applications.
60" Anodized Aluminum Overlapping Astragal with Vinyl Seal
Application: Fits beveled edge doors
Color: Vinyl is black
Fasteners: #8 X 1" FH U/C SMS furnished
Finish: Anodized aluminum
Fire Rated: Flame resistant
Height: Maximum height 120"
Length: 60.0"
Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature range 0°F to 140°F
