NGP 160U 36" Mill Aluminum Polyurethane Perimeter Seal delivers exceptional performance for commercial restroom partitions. Constructed from durable Aluminum Alloy 6063 with a T5 temper, this perimeter seal offers impressive abrasion resistance, tensile strength, and UV stability, ensuring longevity in high-traffic environments. Designed to withstand a wide temperature range of -80°F to 200°F, it is both flame-resistant and moisture-resistant, making it an ideal choice for various applications. The black polyurethane material not only enhances aesthetic appeal but also provides effective sealing against air infiltration, certified by UL to ANSI/UL10C standards. Installation is straightforward, thanks to slotted screw holes that allow for easy adjustment. Each unit comes with #6 x 3/4" stainless steel sheet metal screws, ensuring a secure fit. Furthermore, this seal complies with fire safety standards, making it suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. With its combination of durability, safety, and ease of installation, the NGP 160U 36" Mill Aluminum Polyurethane Perimeter Seal is an essential component for maintaining the integrity and functionality of restroom partitions in commercial settings.

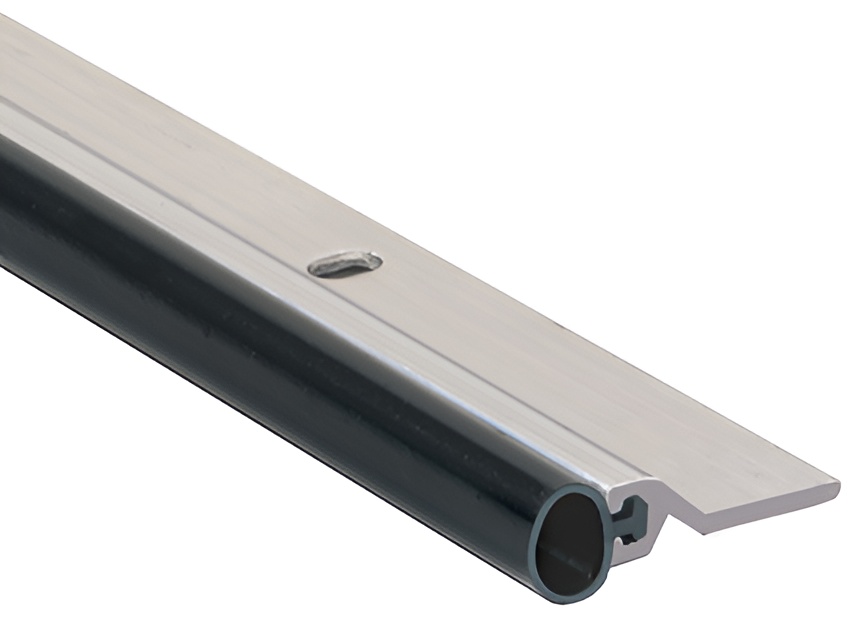

36" Mill Aluminum Polyurethane Perimeter Seal
Color: Polyurethane is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Fire Rated: Flame-Resistant
Length: 36.0"
Material: Mill Aluminum
Moisture Resistant: YES
Resistance: Very Good Abrasion Resistance, Tensile Strength, Memory and UV Resistance
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature Range -80°F to 200°F
