NGP 161VA 36" Anodized Aluminum Vinyl Perimeter Seal offers a robust solution for maintaining optimal conditions in commercial restroom partitions. Crafted from durable Aluminum Alloy 6063 with a T5 temper, this perimeter seal is designed to endure various environmental challenges. It features a thermoplastic polymer made from polyvinyl chloride, formulated with an eco-friendly bio-based plasticizer, ensuring a sustainable choice for your projects. This perimeter seal is not only economical but also flame-resistant and moisture-resistant, making it ideal for high-traffic areas. With a temperature range of 0°F to 140°F, it provides reliable performance under diverse conditions. The black vinyl material complements various design aesthetics while ensuring longevity, as it resists oxidative degradation from exposure to cold, heat, and UV rays. Installation is made simple with #6 x 3/4" stainless steel sheet metal screws provided, and slotted screw holes allow for easy adjustments. NGP 161VA is certified by UL to meet rigorous standards, including fire-rated applications for both hollow metal and wood fire doors. Elevate your restroom partitions with this high-quality, effective perimeter seal that combines functionality and style seamlessly.

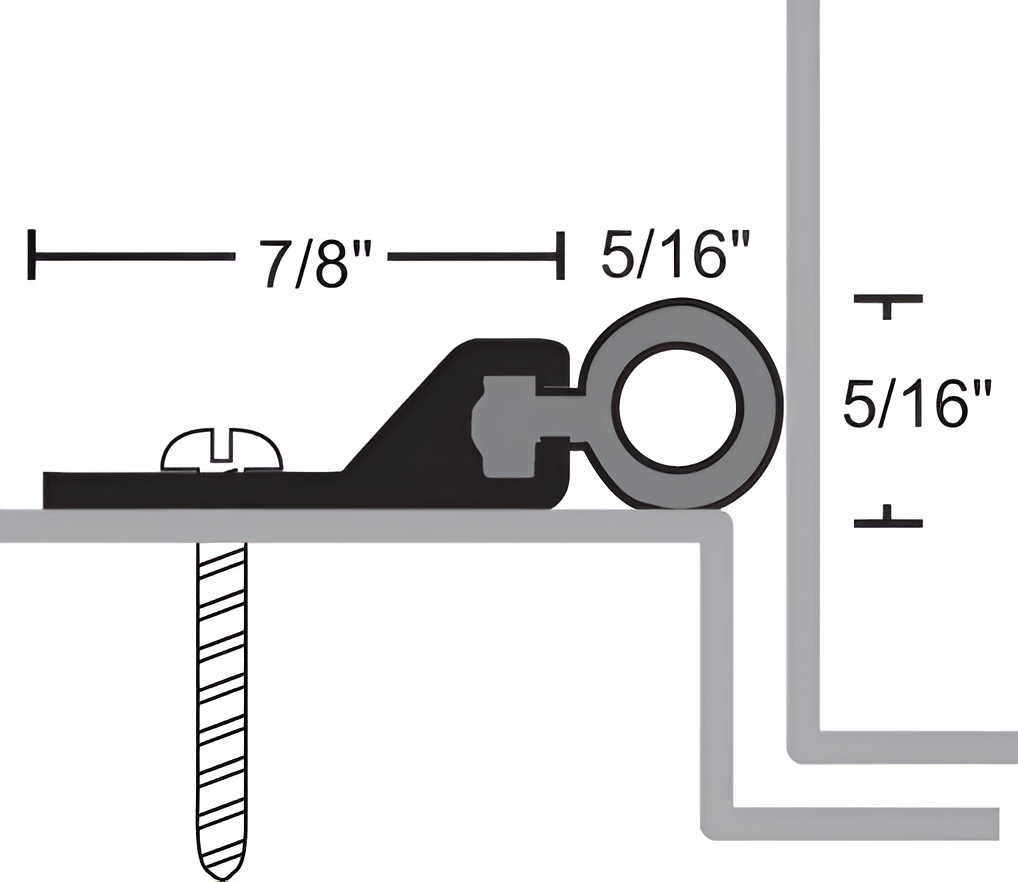

36" Anodized Aluminum Vinyl Perimeter Seal
Color: Vinyl is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 36.0"
Material: Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature Range 0°F to 140°F
