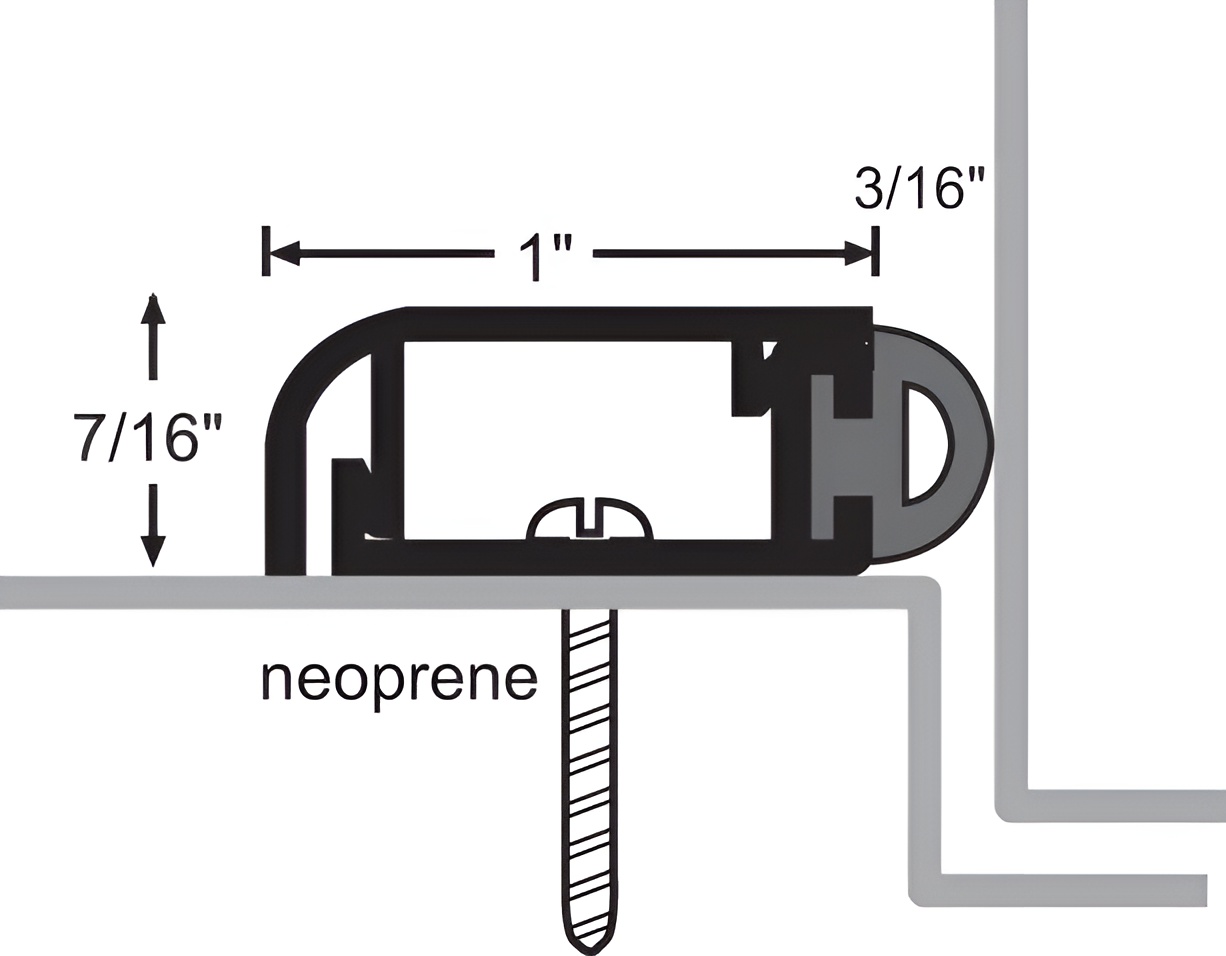

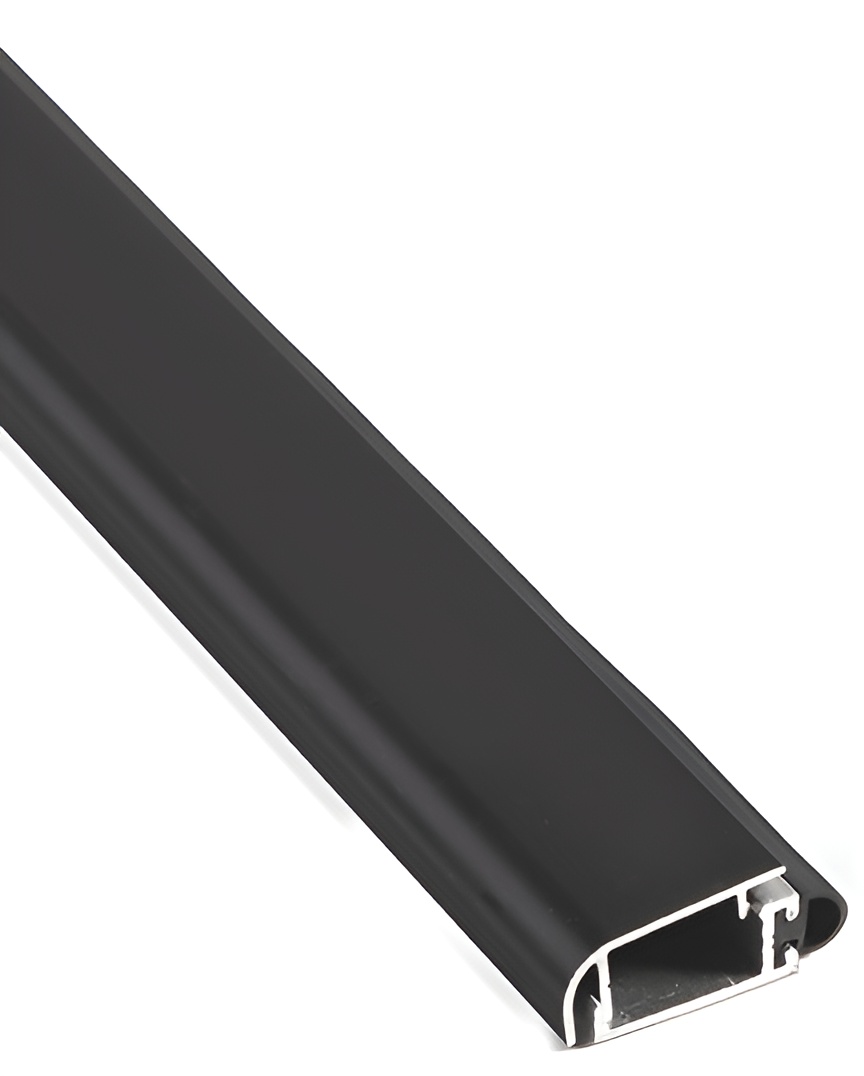

NGP 170NDKB 96" DKB-finish Aluminum Neoprene Perimeter Seal with Concealed Fastener is designed to enhance the durability and functionality of your commercial restroom partitions. Constructed from robust Aluminum Alloy 6063, T5 Temper, this perimeter seal offers impressive abrasion resistance, tensile strength, and memory, ensuring long-lasting performance even in high-traffic environments. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix provides exceptional moisture resistance, making it ideal for restroom applications. It operates effectively within a temperature range of -81°F to 275°F and is flame-resistant, ensuring safety in various conditions. The dark bronze finish not only adds a sleek aesthetic but also helps conceal screw heads with a snap-on cover, promoting a clean appearance. NGP's commitment to quality is reflected in its BHMA certification to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring that this product meets rigorous industry standards. The included #6 X 3/4" stainless steel sheet metal screws are slotted for easy adjustment, streamlining the installation process. Whether you're a building professional or a knowledgeable homeowner, the NGP 170NDKB perimeter seal is an indispensable component for maintaining the integrity and efficiency of your restroom partitions.
Attributes
Ship via: No UPS - Common Carrier Only
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 X 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 96.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
