NGP 197NDKB 60" DKB-finish Aluminum Neoprene Door Sweep is designed to enhance the performance and durability of your commercial restroom partitions. Constructed from high-quality Aluminum Alloy 6063 with a T5 temper, this door sweep combines strength with functionality. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix ensures excellent abrasion resistance, tensile strength, and memory, making it a reliable choice for high-traffic areas. This model is flame-resistant and moisture-resistant, capable of withstanding temperatures ranging from -81°F to 275°F. Its design offers notable resistance to ozone, sunlight, and aging, ensuring longevity even in demanding environments. The NGP 197NDKB meets stringent BHMA standards, certified to ANSI/BHMA A156.22 performance tests for heat and cold, making it suitable for a variety of applications. Included with the door sweep are #6 x 3/4" stainless steel SMS fasteners, and the slotted screw holes allow for easy adjustments during installation. With its sleek dark bronze finish, this door sweep not only performs exceptionally but also adds an elegant touch to your restroom partitions. Elevate your space with the NGP 197NDKB, where functionality meets style.

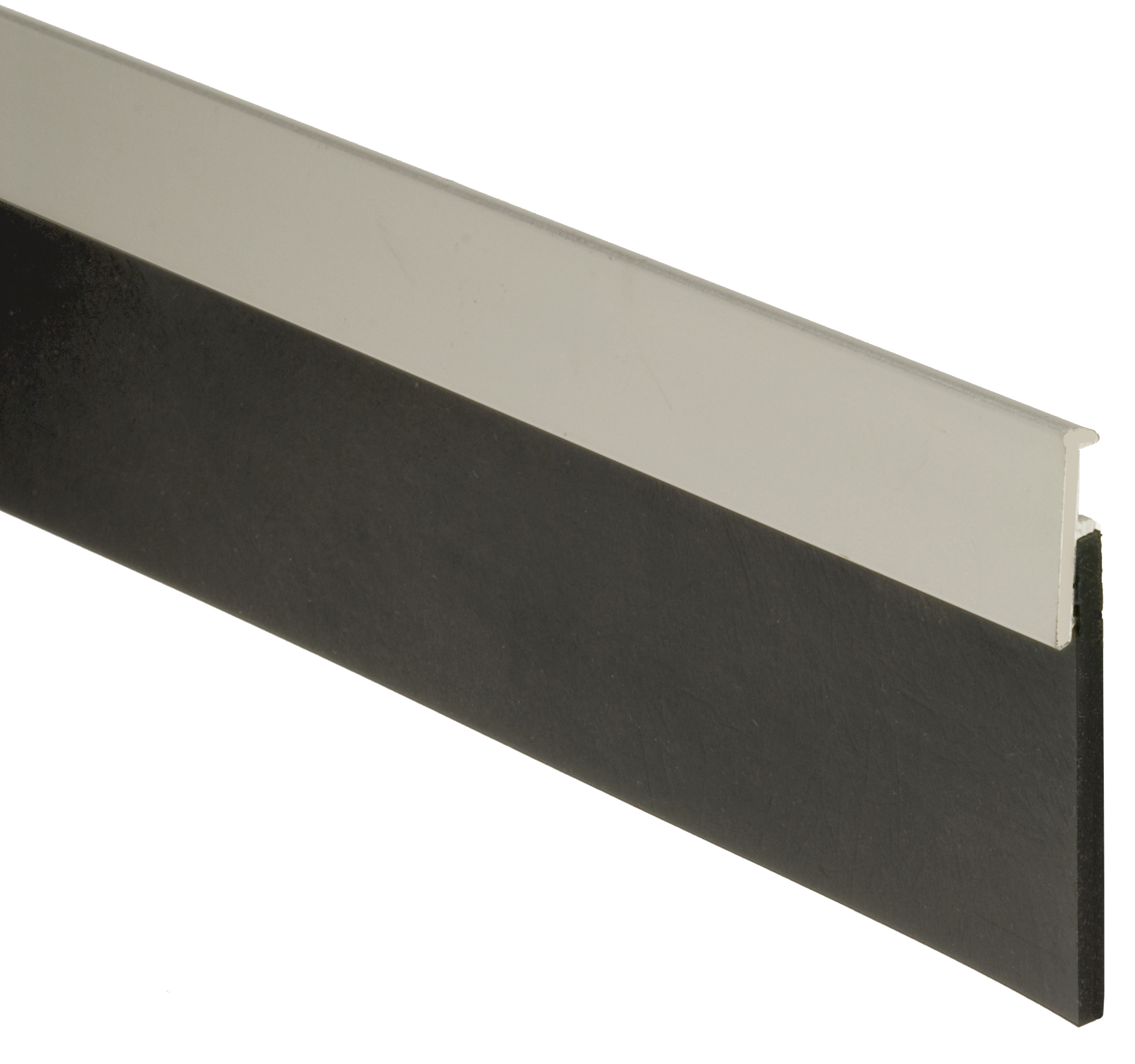

60" DKB-finish Aluminum Neoprene Door Sweep
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 60.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
