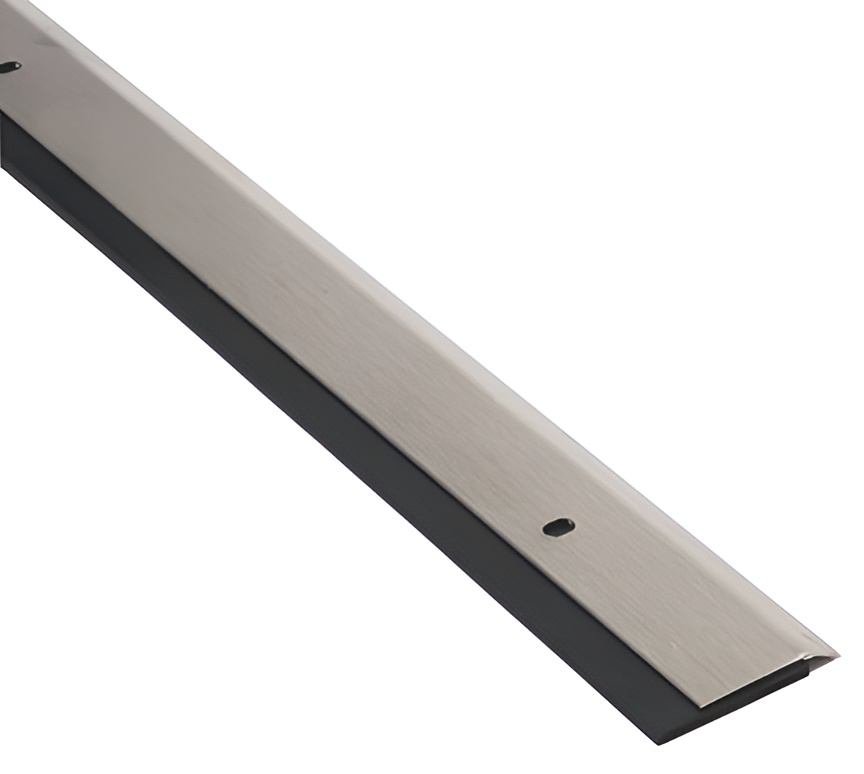

NGP 200SSS 96" Stainless Steel Door Sweep with Silicone Seal is engineered for exceptional performance and durability in commercial restroom environments. Constructed from high-quality type 304 stainless steel, this door sweep features a brushed #4 finish that not only enhances its aesthetic appeal but also provides corrosion resistance. The synthetic rubber polymer, made from Siloxane closed cell sponge, ensures excellent flexibility and memory, allowing it to maintain its shape over time. Designed to withstand a temperature range of -100°F to 500°F, this door sweep remains flexible even in extreme conditions. It boasts superior resistance to moisture, ozone, UV exposure, and aging, making it a reliable choice for various applications. The NGP 200SSS is also flame resistant and recommended for use in areas utilizing FM200 or Halon Fire Suppression Systems. Certified to ANSI/BHMA A156.22 performance tests for heat and cold, this door sweep features slotted screw holes for easy adjustments during installation. Furthermore, with its black silicone seal, it effectively minimizes air infiltration, enhancing energy efficiency while maintaining safety standards. For professionals seeking a robust solution for restroom partitions, the NGP 200SSS offers an ideal blend of functionality and reliability.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Brushed #4 finish (US32D, 630)
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Synthetic rubber polymer: Siloxane closed cell sponge
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
