NGP 211 96" Mill Aluminum Saddle Threshold is designed to provide a robust and reliable solution for your commercial restroom needs. Constructed from high-quality aluminum alloy 6063 in T5 temper, this threshold measures 3 inches wide and stands 3/8 inches tall, ensuring an effective barrier that meets ADA compliance for accessible design. With a fluted top, the NGP 211 not only enhances aesthetic appeal but also offers superior grip for users. This threshold is BHMA certified to ANSI/BHMA A156.21, successfully passing a rigorous 1,000 lb. load test, which guarantees its strength and durability in high-traffic areas. Weighing only 0.43 lbs. per foot, it is lightweight yet sturdy, making installation straightforward. Included with this product are #10 x 1-1/2" FH zinc plated wood screws for easy mounting. The mill finish provides a clean, polished look that complements any restroom decor. Additionally, please note that shipping limitations may apply due to the product's length, which exceeds standard package regulations. Choose the NGP 211 Saddle Threshold for a combination of functionality, safety, and style in your commercial restroom application.
96" Mill Aluminum Saddle Threshold, 3/8" x 3"
Ship via: No UPS - Common Carrier Only
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test

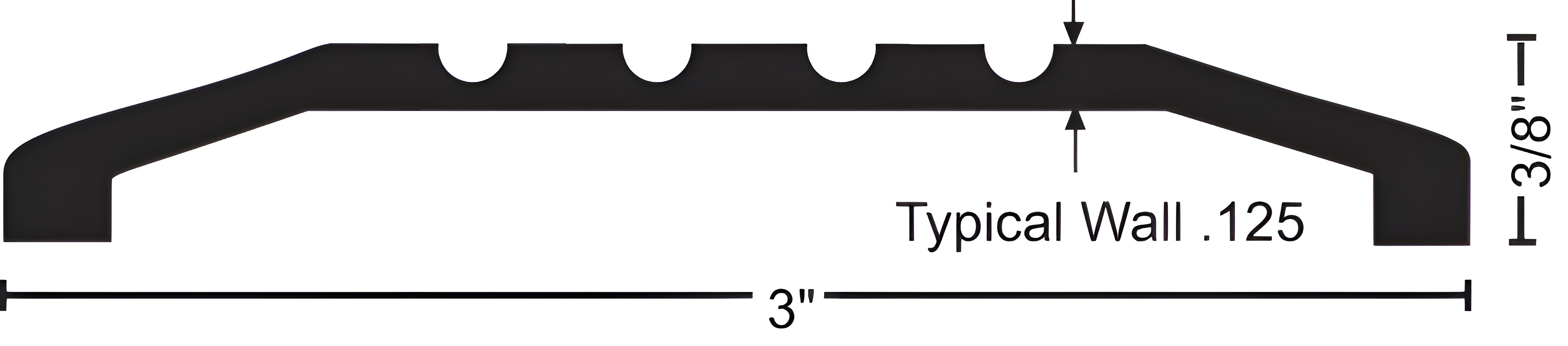

Dimensions: 3" wide x 3/8" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Length: 96.0"
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness: .125"
Weight: Weight: .43 lbs./ft.
