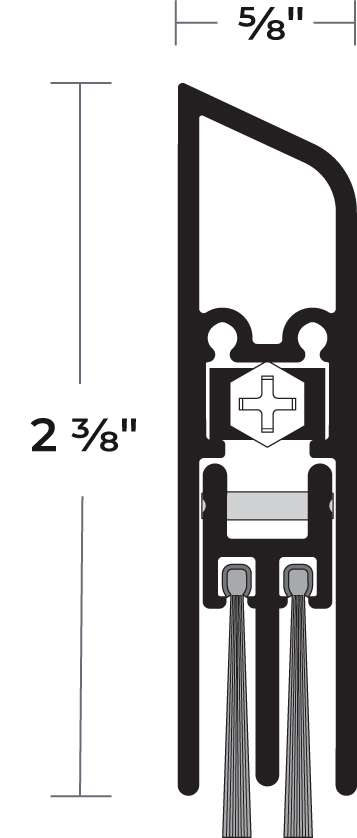

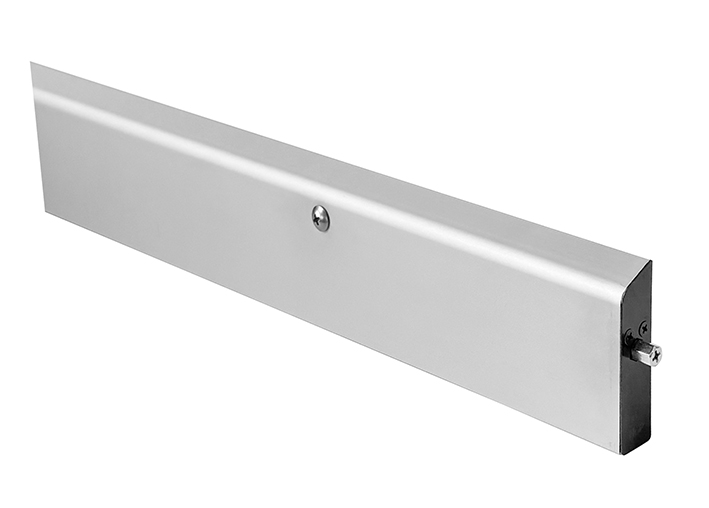

NGP 220WHA 48" Anodized Aluminum Automatic Door Bottom with Nylon Brush Seal is designed for superior performance in commercial restroom environments. This door bottom is BHMA Certified to ANSI/BHMA A156.22, ensuring it meets rigorous standards, including a 1,000,000 cycle test for durability and performance against heat and cold. Crafted from Aluminum Alloy 6063 with T5 temper, this product features a synthetic polymer nylon brush that provides excellent abrasion resistance, flexibility, and memory, making it ideal for carpet applications where no threshold is present. The moisture-resistant design ensures longevity, while the temperature range of -70°F to 425°F makes it suitable for varied climates. For optimal sealing, it mounts on the push side of the door and should be used with a threshold. The maximum drop is 7/8", and the door bottom is handed, supplied as a right-hand unit unless otherwise specified. With a length of 48", it can be customized in the field for lengths over 36". The nylon brush seal is black, adding a sleek finish to your restroom partitions. This product is not only compliant with REACH and RoHS standards but also certified for smoke and draft control, enhancing safety in your commercial space. Choose NGP for reliable and efficient restroom hardware solutions.
Attributes
Application: Nylon Brush Recommended for Carpet Applications Where no Threshold is Provided
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon Brush is Black
Drop: 7/8" Max Drop
Finish: Anodized Aluminum
Handing: Door Bottom is Handed. Right Hand Supplied Unless Specified. Units Under 36" Not Field Reversible. Please Specify Handing
Length: 48"
Material: Synthetic Polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent Abrasion Resistance, Flexibility and Memory
Ro HS: REACH and RoHS Compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -70°F to 425°F
