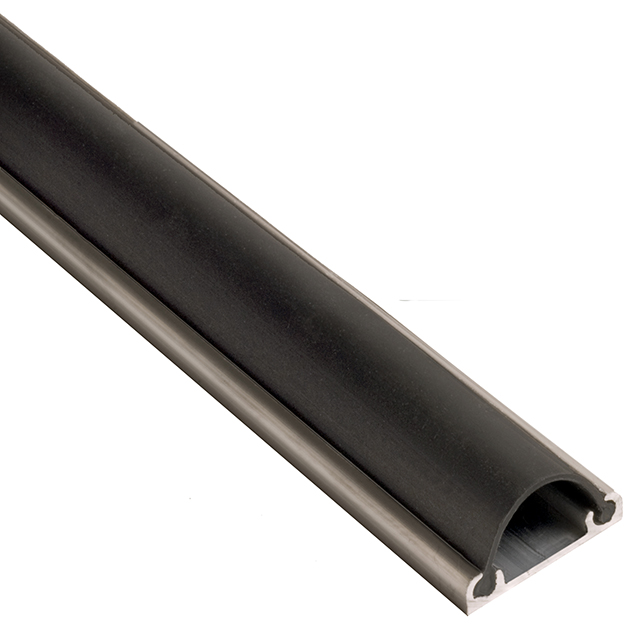

NGP 26NDKB 72" DKB-finish Aluminum Neoprene Door Shoe offers a robust solution for commercial restroom partitions, combining durability and functionality in one sleek design. Constructed from Aluminum Alloy 6063 with T5 temper, this door shoe is built to withstand the rigors of everyday use. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix ensures excellent abrasion resistance, tensile strength, and memory, making it an ideal choice for high-traffic environments. This door shoe is not only flame-resistant but also moisture-resistant, providing optimal performance in various conditions with a temperature range from -81°F to 275°F. Its dark bronze finish adds an aesthetic appeal while offering good resistance to ozone, sunlight, and aging. Designed with convenience in mind, the NGP 26NDKB features slotted screw holes for easy adjustment and comes with #6 x 3/4" stainless steel SMS fasteners, ensuring a secure fit. Additionally, it is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring compliance with strict safety standards. Overall, the NGP 26NDKB door shoe is an excellent choice for building professionals seeking reliable and stylish hardware for restroom partitions.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 72.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
