NGP 322DKB 72" DKB-finish Aluminum Half Saddle Threshold offers a robust solution for commercial restroom installations. Crafted from aluminum alloy 6063 with a T5 temper, this threshold measures 3" wide and 1/2" tall, featuring a fluted top for aesthetic appeal and added durability. The dark bronze finish not only enhances its visual appeal but also complements various architectural styles. This threshold is designed with a thermal break, ensuring energy efficiency without compromising accessibility. It is ADA compliant when installed properly, making it an ideal choice for barrier-free environments where the non-beveled edge is flush with the flooring or where a vertical rise does not exceed 1/4". Weighing only .48 lbs./ft., it is lightweight yet sturdy, allowing for easy handling during installation. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws, ensuring secure attachment. The NGP 322DKB is certified by UL for use with both hollow metal and wood fire doors, offering peace of mind in safety-conscious environments. Whether for new constructions or remodels, this threshold combines functionality with compliance, making it a reliable choice for building professionals and knowledgeable homeowners alike.
72" DKB-finish Aluminum Half Saddle Threshold, 1/2" x 3"
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
Application: Designed for thermal break. Bumper seal not available

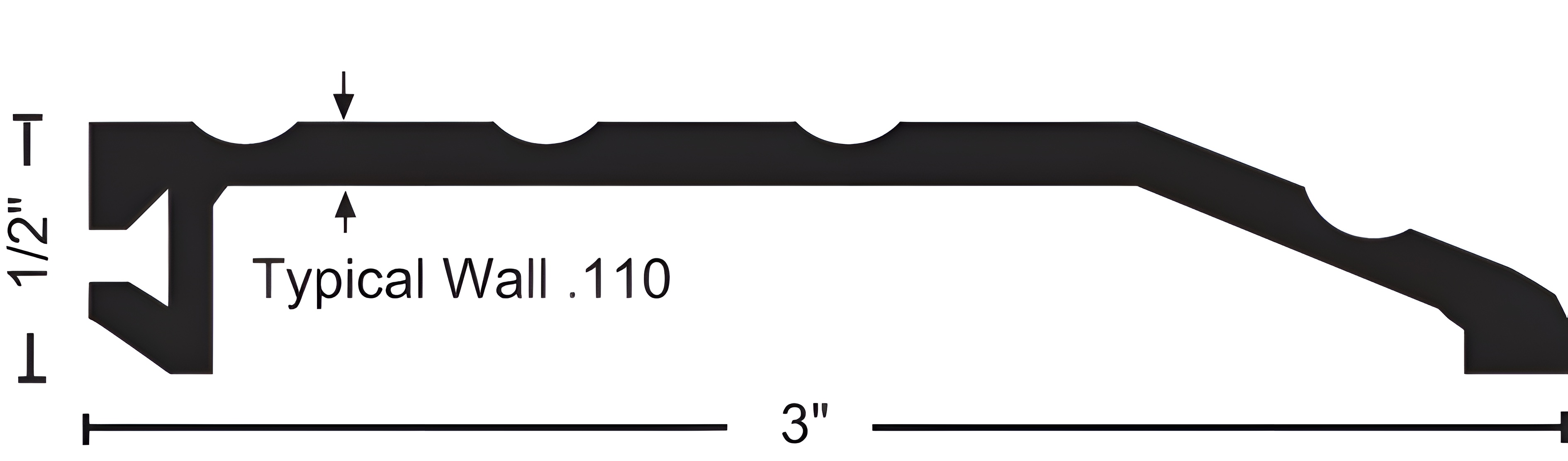

Dimensions: 3" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .110"
Weight: Weight: .48 lbs./ft.
