NGP 325BR 60" Architectural Bronze Half Saddle Threshold, 1/2" x 5" is designed to provide durability and elegance for commercial restroom installations. Constructed from Alloy CDA 385 (Copper Alloy No. C38500), this threshold features a robust fluted top and measures 5 inches in width and 1/2 inch in height, ensuring a reliable barrier that meets both functional and aesthetic needs. Certified by BHMA to ANSI/BHMA A156.21, it can withstand an impressive 10,000 lb. load test, making it an ideal choice for high-traffic areas. Its architectural bronze satin finish (similar to US4) not only enhances the overall appearance but also complements a variety of design styles. This threshold is ADA compliant when installed with the non-beveled edge flush with the flooring or where the vertical rise does not exceed 1/4 inch, ensuring accessibility for all users. Each unit weighs 3.95 lbs. per foot and comes with #10 x 1-1/2" brass wood screws to facilitate a straightforward installation process. Whether you’re upgrading an existing facility or outfitting a new construction, the NGP 325BR threshold offers a combination of strength, compliance, and style that is essential for modern commercial spaces.
60" Architectural Bronze Half Saddle Threshold, 1/2" x 5"
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
BHMA: BHMA Certified to ANSI/BHMA A156.21 10,000 Lb. Load Test

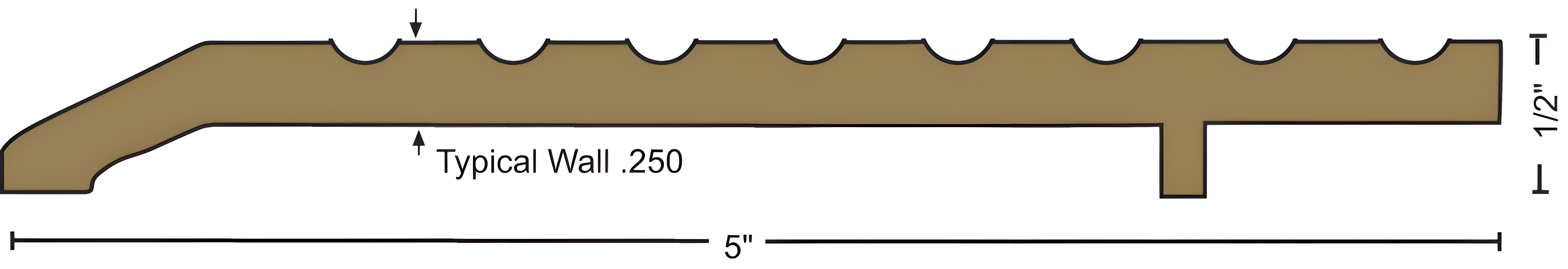

Dimensions: 5" width x 1/2" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Length: 60.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .250"
Weight: Weight: 3.95 lbs./ft.
