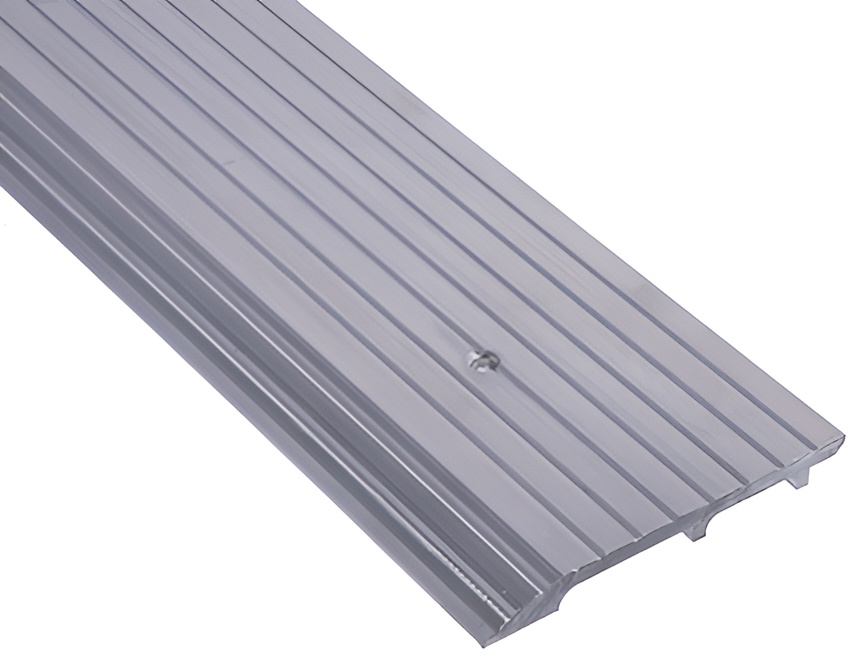

NGP 325HD 36" ADA Compliant Heavy Duty Aluminum Half Saddle Threshold is expertly designed for high-traffic areas, providing reliable performance and accessibility. Constructed from durable aluminum alloy 6063 in T5 temper, this threshold measures 5" wide and stands 1/2" tall, making it ideal for delivery and storage doorways where heavier loads frequently traverse. The fluted top not only enhances its aesthetic appeal but also offers practical traction for foot traffic. Compliant with ADA standards, it can be installed with a non-beveled edge flush with flooring or where the vertical rise does not exceed 1/4", ensuring barrier-free access. Weighing just 1.65 lbs./ft., the NGP 325HD is lightweight yet robust enough to handle forklift and vehicular traffic. Each threshold comes with #10 x 1-1/2" FH zinc-plated wood screws, with dark bronze finishes provided for DKB thresholds. This threshold is also certified by UL for fire door applications, complying with NFPA standards, making it a safe choice for commercial settings. With a mill finish, the NGP 325HD combines functionality with a sleek look, ensuring it meets the demands of both building professionals and discerning homeowners.
36" ADA Compliant Heavy Duty Aluminum Half Saddle Threshold, 1/2" x 5"
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
Dimensions: 5" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness: .250"
Weight: Weight: 1.65 lbs./ft.
