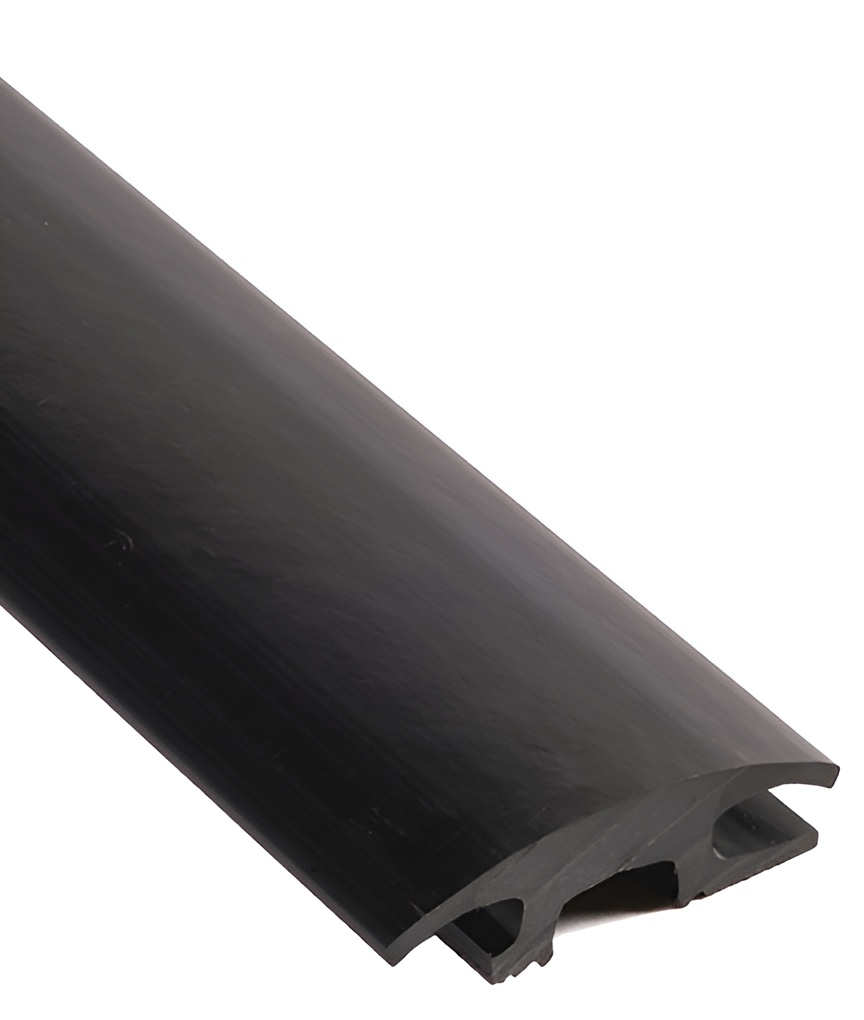

NGP 402 48" Hospitality Vinyl Carpet/Tile Divider Threshold is designed to provide a seamless transition from tile to carpet, enhancing the aesthetic and functional aspects of commercial spaces. Measuring 2-3/4" wide and standing 3/4" tall, this threshold effectively bridges the gap between flooring types while ensuring ADA compliance when installed correctly. Crafted from durable black vinyl, the NGP 402 not only looks professional but also withstands the rigors of high-traffic environments. Installation is straightforward and can be efficiently completed using adhesive products such as NGP RR5007BL, Black RTV silicone rubber construction sealant, which bonds effectively-one tube covers up to 12 feet of this threshold. With a maximum length of 73 inches, the NGP 402 is suitable for various applications, ensuring versatility in different building designs. This product is certified by UL to meet stringent fire safety standards, making it a reliable choice for both hollow metal and wood fire doors rated for significant durations. Enhance your commercial restroom or hospitality space with the NGP 402, where functionality meets compliance and style, ensuring a welcoming environment for all users.
48" Hospitality Vinyl Carpet/Tile Divider Threshold, 3/4" x 2-3/4"

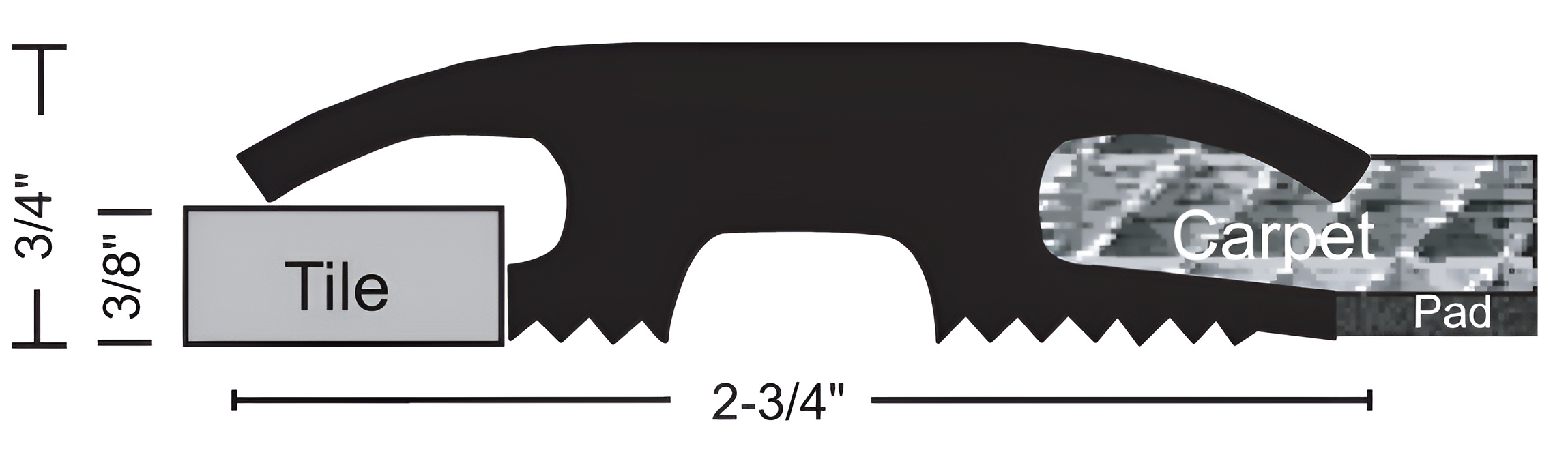

ADA: ADA Compliant when installed as illustrated between carpet
Application: For transition from tile to carpet
Color: Black vinyl
Dimensions: 2-3/4" wide x 3/4" tall
Length: 48.0"
Maximum Length: Maximum length = 73"
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
