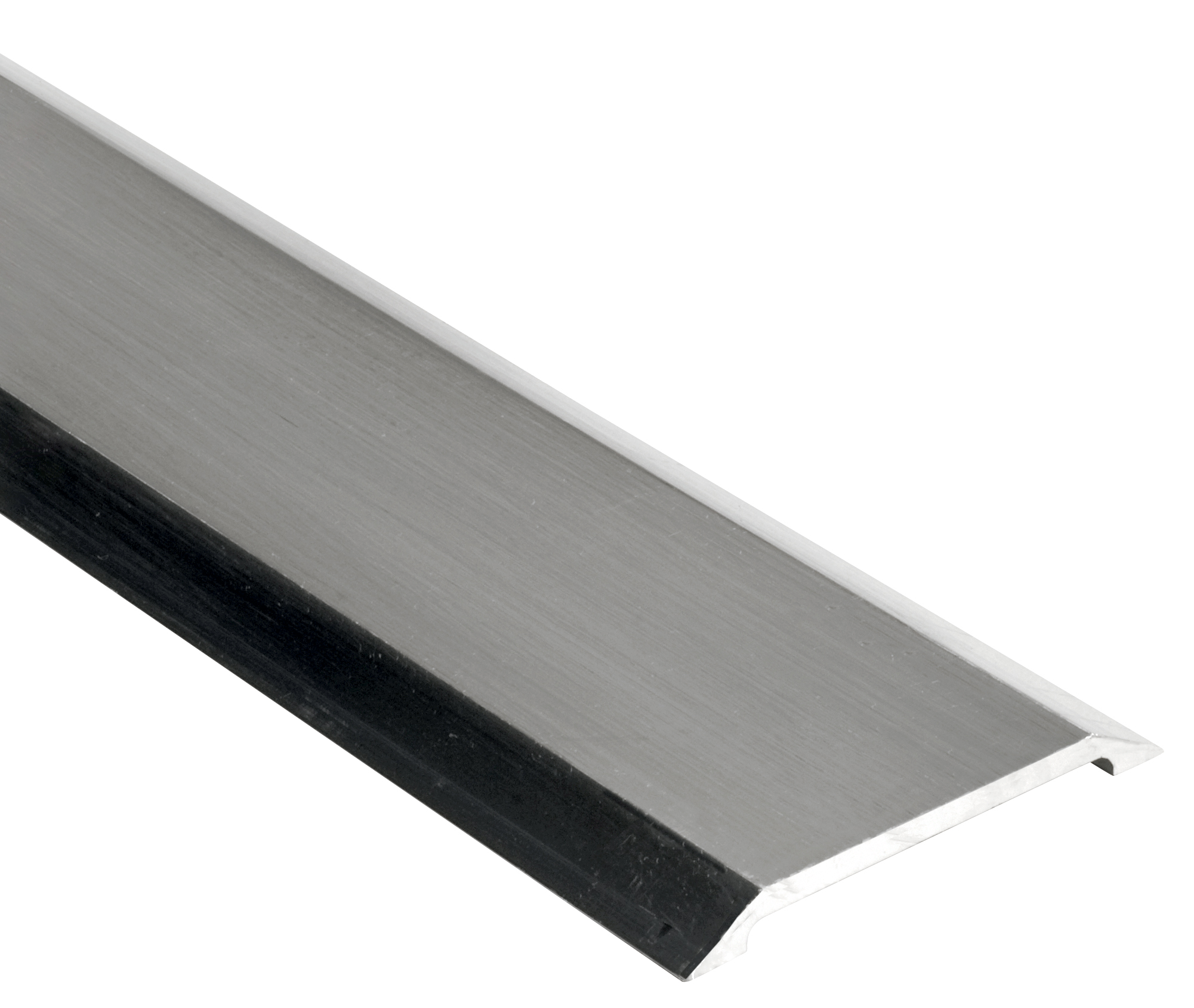

NGP 410 60" Mill Aluminum Smooth Surface Saddle Threshold is expertly crafted from durable aluminum alloy 6063 with a T5 temper, ensuring long-lasting performance in commercial restroom applications. Measuring 2-1/2" wide and 1/4" tall, this threshold features a smooth top that enhances accessibility while providing a sleek finish. Certified by BHMA to meet ANSI/BHMA A156.21 standards with a robust 1,000 lb. load test, the NGP 410 is ideal for environments where automatic door bottoms are utilized, ensuring optimal functionality and support. Its mill finish gives it a polished look while seamlessly integrating into various designs. Lightweight at just 0.36 lbs./ft., this threshold is easy to install, with #10 x 1-1/2" FH zinc plated wood screws included for your convenience. The threshold also meets ADA compliance standards, making it suitable for barrier-free installations. Additionally, it is certified by UL for use with both hollow metal and wood fire doors, providing peace of mind in safety and accessibility. Choose the NGP 410 for a reliable, efficient solution that combines strength, style, and compliance in one exceptional product.
60" Mill Aluminum Smooth Surface Saddle Threshold, 1/4" x 2-1/2"
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Dimensions: 2-1/2" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.

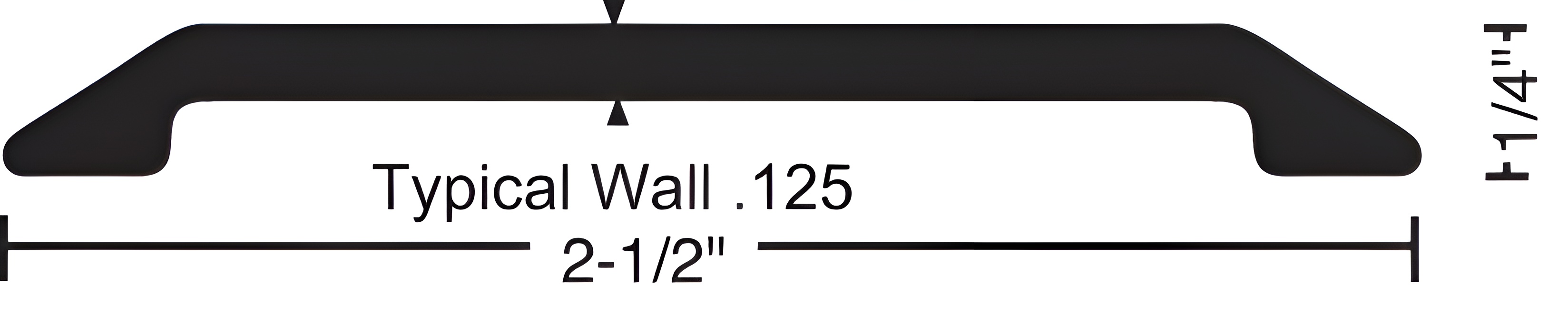

Wall Thickness: Typical wall thickness .125"
Weight: Weight: .36 lbs./ft.
