NGP 428BR 60" Architectural Bronze Saddle Threshold offers a robust and stylish solution for your commercial restroom needs. Crafted from Alloy CDA 385 (Copper Alloy No. C38500), this threshold measures 60 inches in length with a height of 1/2 inch and a width of 8 inches, making it ideal for various applications. The fluted top design not only enhances aesthetics but also ensures durability and performance. Weighing 5.06 lbs. per foot, this threshold is built to withstand heavy foot traffic while maintaining its structural integrity. Included with your purchase are #10 X 1-1/2" brass wood screws, featuring an antique bronze finish that beautifully complements the dark bronze threshold. The NGP 428BR is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1, ensuring barrier-free access. Moreover, it is certified by UL for fire safety, compliant with CAN/ULC-S104 and ANSI/UL10B standards, making it suitable for both hollow metal and wood fire doors rated up to 3 hours and 90 minutes, respectively. With its elegant architectural bronze satin finish, this threshold is not just functional; it's a stylish addition to any restroom.
60" Architectural Bronze Saddle Threshold, 1/2" x 8"
Dimensions: 8" width x 1/2" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Length: 60.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

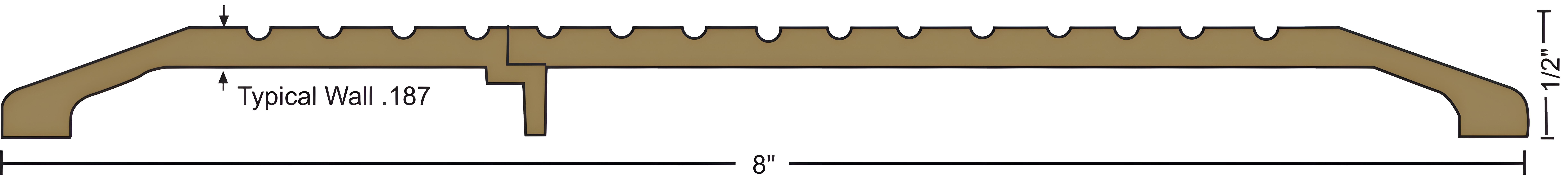

Wall Thickness: Typical wall thickness .187"
Weight: Weight: 5.06 lbs./ft.
