NGP 434DKB 60" DKB-finish Aluminum Saddle Threshold provides a robust solution for barrier-free access in commercial environments. Crafted from high-quality aluminum alloy 6063 with T5 temper, this threshold combines durability with aesthetic appeal, featuring a sleek dark bronze/black anodized finish. Measuring 4" wide and 1/4" tall, the fluted top design not only enhances the look but also aids in slip resistance, ensuring safety in high-traffic areas. This threshold is BHMA certified to ANSI/BHMA A156.21, having successfully undergone a rigorous 1,000 lb. load test, which speaks to its strength and reliability. Installation is straightforward, as it comes with #10 x 1-1/2" FH zinc plated wood screws included, allowing for a secure fit. Weighing only .54 lbs. per foot, it is lightweight yet sturdy, making it ideal for various applications. Additionally, the NGP 434DKB is ADA compliant, meeting the requirements for accessible design, while also being certified by UL for use with fire doors, ensuring safety and compliance with fire safety standards. For building professionals seeking a dependable and stylish threshold solution, the NGP 434DKB stands out as a top choice.
60" DKB-finish Aluminum Saddle Threshold, 1/4" x 4"
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test

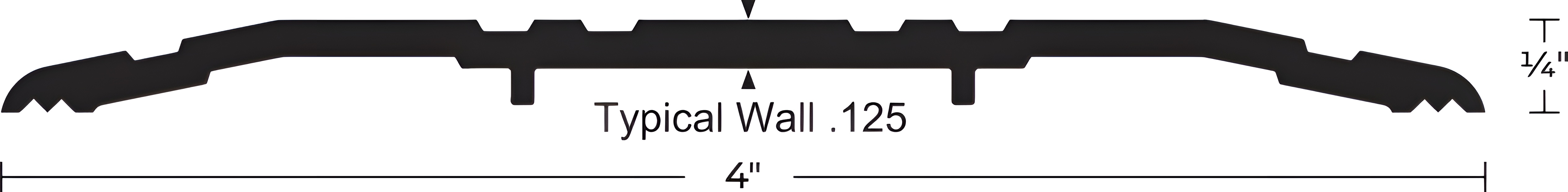

Dimensions: 4" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze/black anodized finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .54 lbs./ft.
