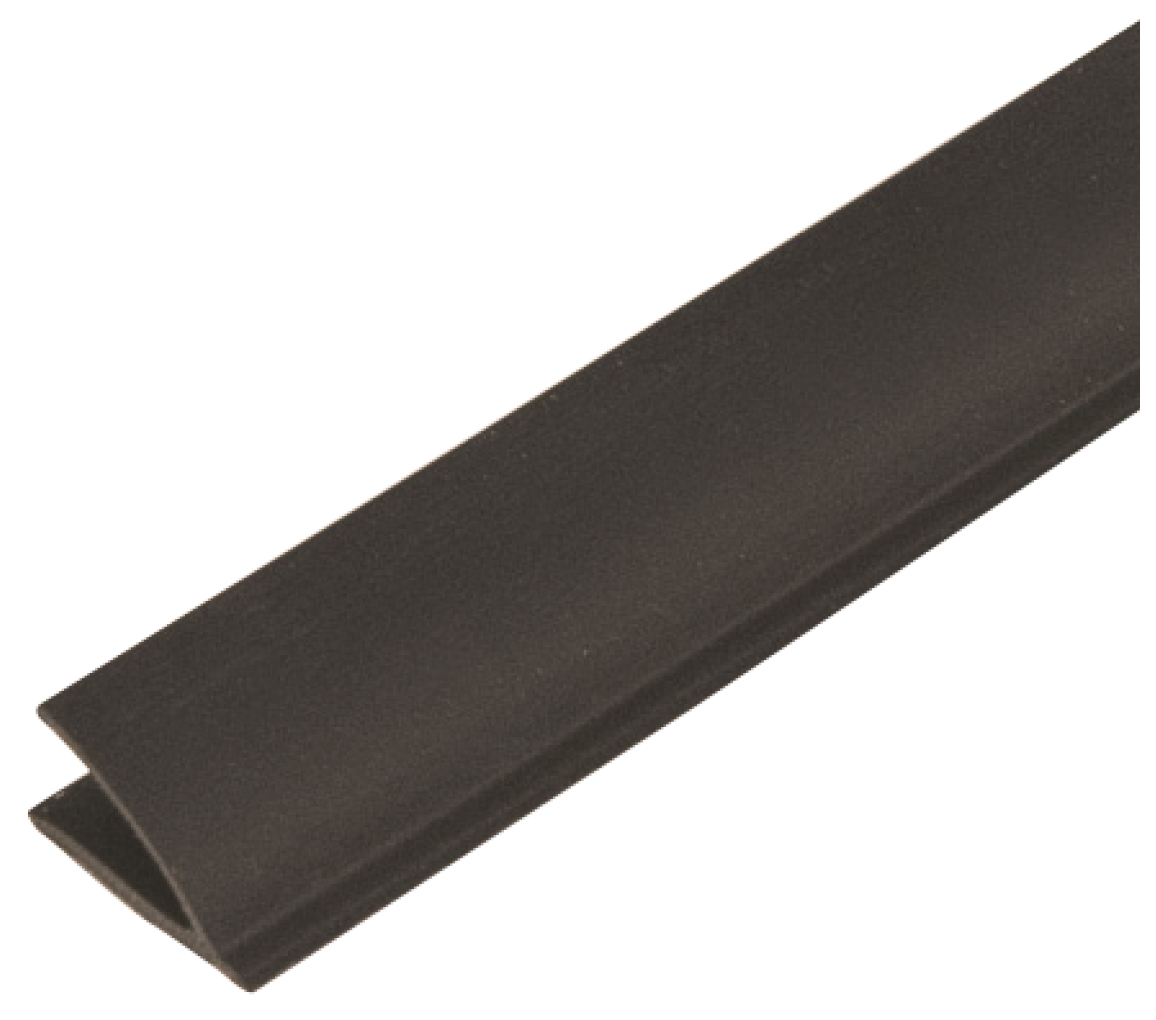

NGP 5040B 36" Self-Adhesive Silicone Smoke Seal delivers superior protection and performance for commercial restroom applications. Constructed from synthetic rubber polymer (Siloxane), this smoke seal boasts excellent flexibility and memory, ensuring a reliable fit even in extreme conditions. With a temperature range of -100°F to 500°F, it remains flexible and functional, making it suitable for a variety of environments. This seal is not only flame resistant but also moisture resistant, allowing it to stand up to water, detergent, and a host of chemicals. Its modified acrylic pressure-sensitive adhesive provides high initial adhesion and long-term holding power, making it ideal for both interior and exterior installations. The seal is BHMA Certified to ANSI/BHMA A156.22 performance tests, ensuring it meets stringent standards for heat, cold, air, and smoke infiltration. Available in brown, the NGP 5040B comes in various roll lengths, including 17', 20', 21', 25', and 300', catering to different project needs. Its shelf life is one year when stored properly, ensuring you have the right materials on hand for your installation. Elevate your restroom partition hardware with the trusted quality and performance of NGP.
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
Color: Brown
Dimensions: 1/2" wide x 5/16" tall
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 36.0"
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: End use temperature range of adhesive, long term exposure -30°F up to 250°F
