NGP 5060B 96" Self-Adhesive Positive Pressure Silicone Fin Smoke Seal delivers unmatched performance for commercial restroom partitions. Crafted from synthetic rubber polymer, specifically siloxane, this high-quality seal offers excellent flexibility and memory, making it an ideal choice for areas using FM200 or Halon Fire Suppression Systems. This smoke seal is flame-resistant and moisture-resistant, ensuring durability in various environments. With a temperature tolerance ranging from -100°F to 500°F, it remains flexible even in extreme conditions. The product is BHMA certified, meeting ANSI/BHMA A156.22 performance standards for heat, cold, air infiltration, and smoke infiltration, providing peace of mind in safety and efficiency. Measuring 1/2" wide and 5/16" tall, the NGP 5060B is available in 17', 20', and 21' rolls, all in a sleek brown color. Its modified acrylic pressure-sensitive adhesive offers high initial adhesion and long-term holding power, suitable for both interior and exterior applications. Furthermore, it boasts impressive resistance to aging, weathering, UV radiation, and a variety of chemicals, making it a reliable choice for long-lasting use. For optimal performance, store the adhesive at 75°F and 50% relative humidity or lower, as it has a shelf life of one year prior to installation. Choose the NGP 5060B for a dependable and effective solution for your partition needs.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
Color: Brown

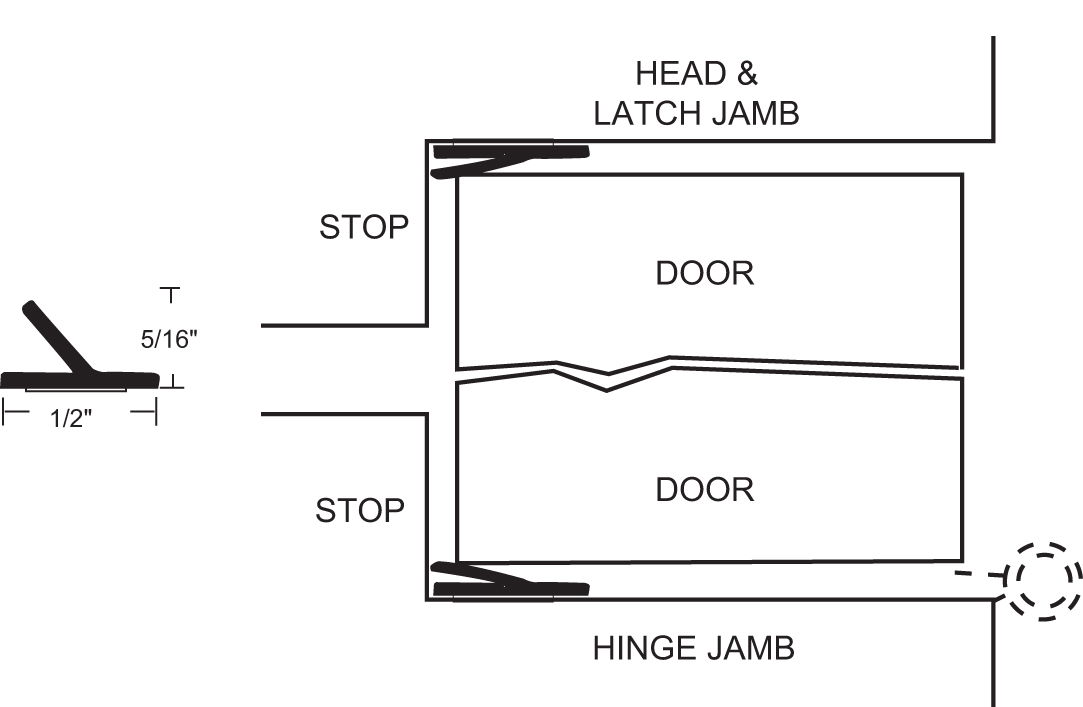

Dimensions: 1/2" wide x 5/16" tall
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: End use temperature range of adhesive, long term exposure -30°F up to 250°F
