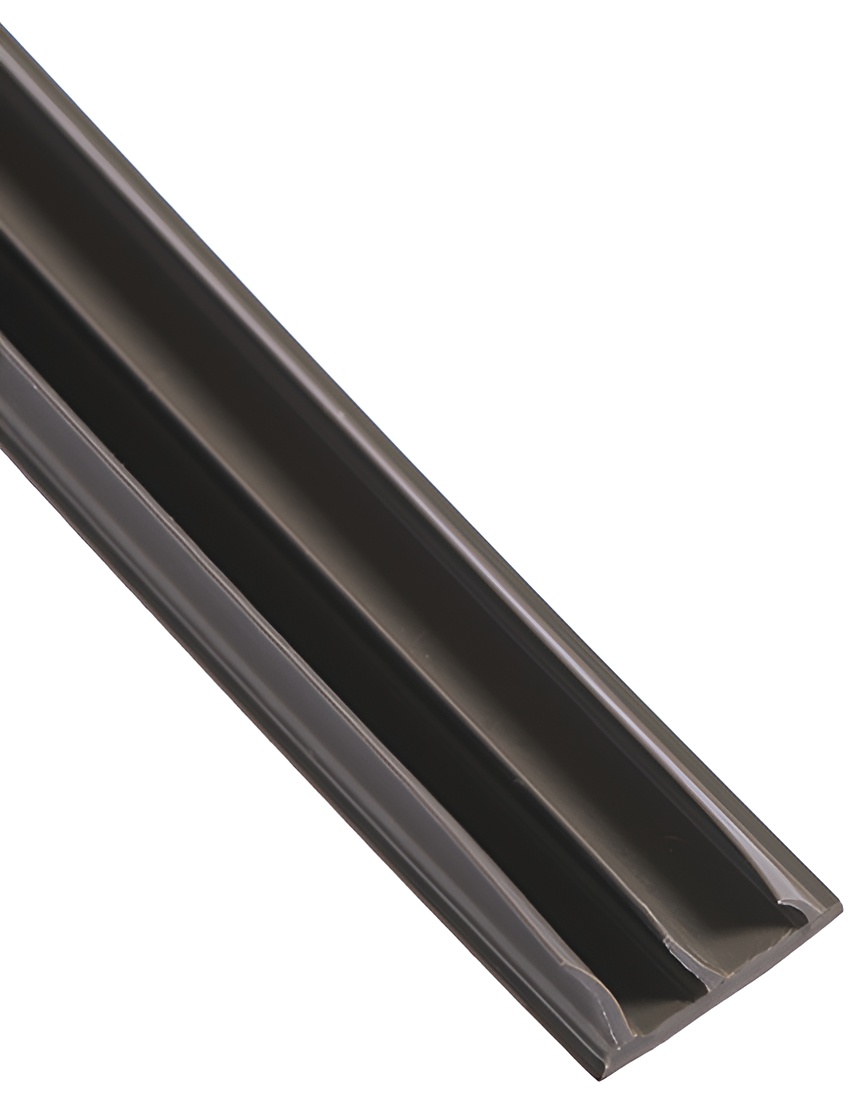

NGP 5075W 96" Self-Adhesive Silicone Triple Fin Smoke Seal offers a reliable solution for achieving superior air and smoke control in commercial settings. Crafted from self-adhesive silicone rubber, this product ensures excellent adhesion and durability, making it resistant to aging, weathering, UV radiation, and various chemicals. With a temperature range of -80°F to 600°F, it performs well under extreme conditions. Certified by BHMA to ANSI/BHMA A156.22 performance tests, the NGP 5075W demonstrates its efficiency in heat, cold, air infiltration, and energy performance. Its dimensions of 1/2" wide and 3/8" tall make it a versatile choice for various applications. This smoke seal is particularly effective when installed on hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, ensuring compliance with the NFPA standards. The modified acrylic pressure-sensitive adhesive is protected by a release liner, ensuring a straightforward installation process. Available in 17', 20', 21', and 25' rolls, the NGP 5075W is an essential addition to your building's safety and energy efficiency measures. Please note that shipping may require common carrier services for larger orders.
Attributes
Ship via: No UPS - Common Carrier Only
BHMA: Bhma Certified to Ansi/Bhma A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance
Dimensions: 1/2" Wide x 3/8" Tall
Length: 96.0"
Resistance: Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -80°F To 600°F
