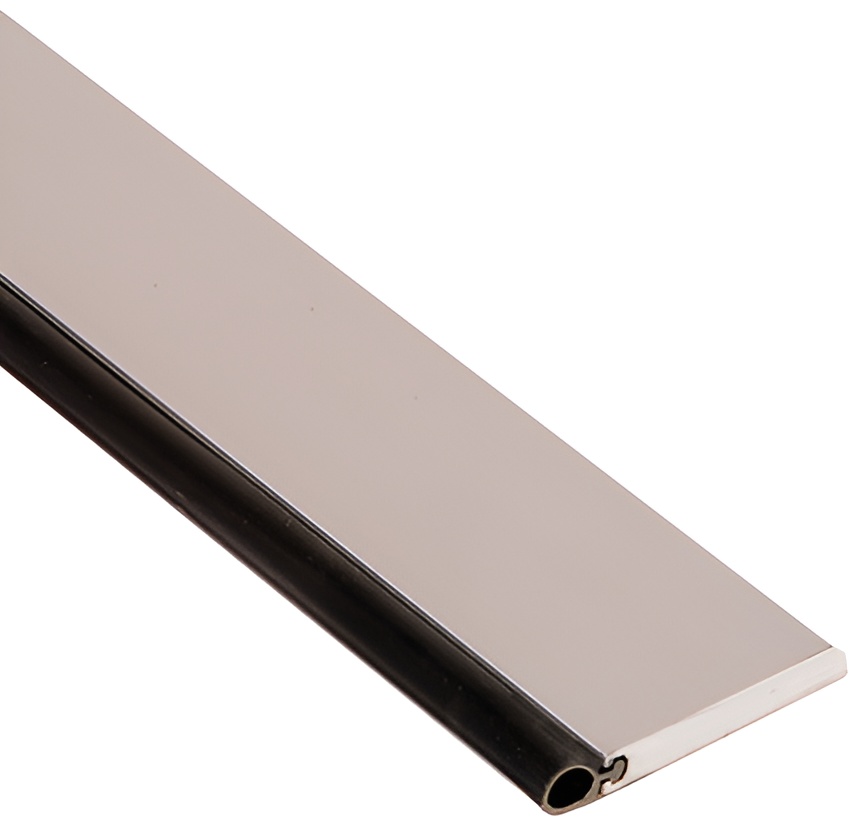

NGP 700S 96" Mill Aluminum Silicone Perimeter Seal offers a robust solution for ensuring optimal performance in commercial restroom environments. Crafted from aluminum alloy 6063 with a T5 temper, this perimeter seal combines durability and flexibility, making it a reliable choice for various applications. The synthetic rubber polymer, Siloxane, ensures excellent flexibility and memory, allowing the seal to maintain its integrity under extreme temperature conditions ranging from -100°F to 500°F. This seal is flame and moisture resistant, providing peace of mind in spaces utilizing FM200 or Halon Fire Suppression Systems. Certified by BHMA to ANSI/BHMA A156.22 performance tests, the NGP 700S excels in heat, cold, air infiltration, and smoke infiltration, making it an ideal choice for those seeking compliance with strict safety standards. The design features slotted holes for easy adjustment and allows for closer mounting without a break in the seal. Additionally, it facilitates the mounting of rim exit device strikes without the need for notching the gasketing. With its exceptional resistance to ozone, UV, and aging, the NGP 700S is a long-lasting addition to any restroom partition setup. This perimeter seal, finished in sleek black silicone and mill aluminum, is supplied with self-drilling #8 screws for effortless installation.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
Color: Silicone is black
Fasteners: Self drilling #8 (Tek type) screws furnished
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Mill aluminum
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
