NGP 705V 48" Mill Aluminum Vinyl Perimeter Seal offers a robust solution for maintaining the integrity of commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 in T5 temper, this perimeter seal combines durability with effectiveness. The thermoplastic polymer, made with an environmentally friendly Bio-based plasticizer, enhances its resilience while ensuring compliance with eco-friendly standards. This economical seal is flame and moisture resistant, making it ideal for a variety of applications. It operates effectively within a temperature range of 0°F to 140°F, ensuring reliability in diverse environments. The innovative design features no break in the seal for closer mounting, allowing for seamless integration with closures like rim exit device strikes without the need for notching gasketing. Installation is straightforward, as the jamb sections are furnished with slotted holes for adjustment, and self-drilling #8 (Tek type) screws are included. The head section is not drilled, allowing for flexibility during installation. NGP 705V is certified by UL to comply with various fire safety standards, ensuring it meets the necessary regulations for both hollow metal and wood fire doors. Incorporate NGP 705V to enhance the performance and safety of your restroom facilities.

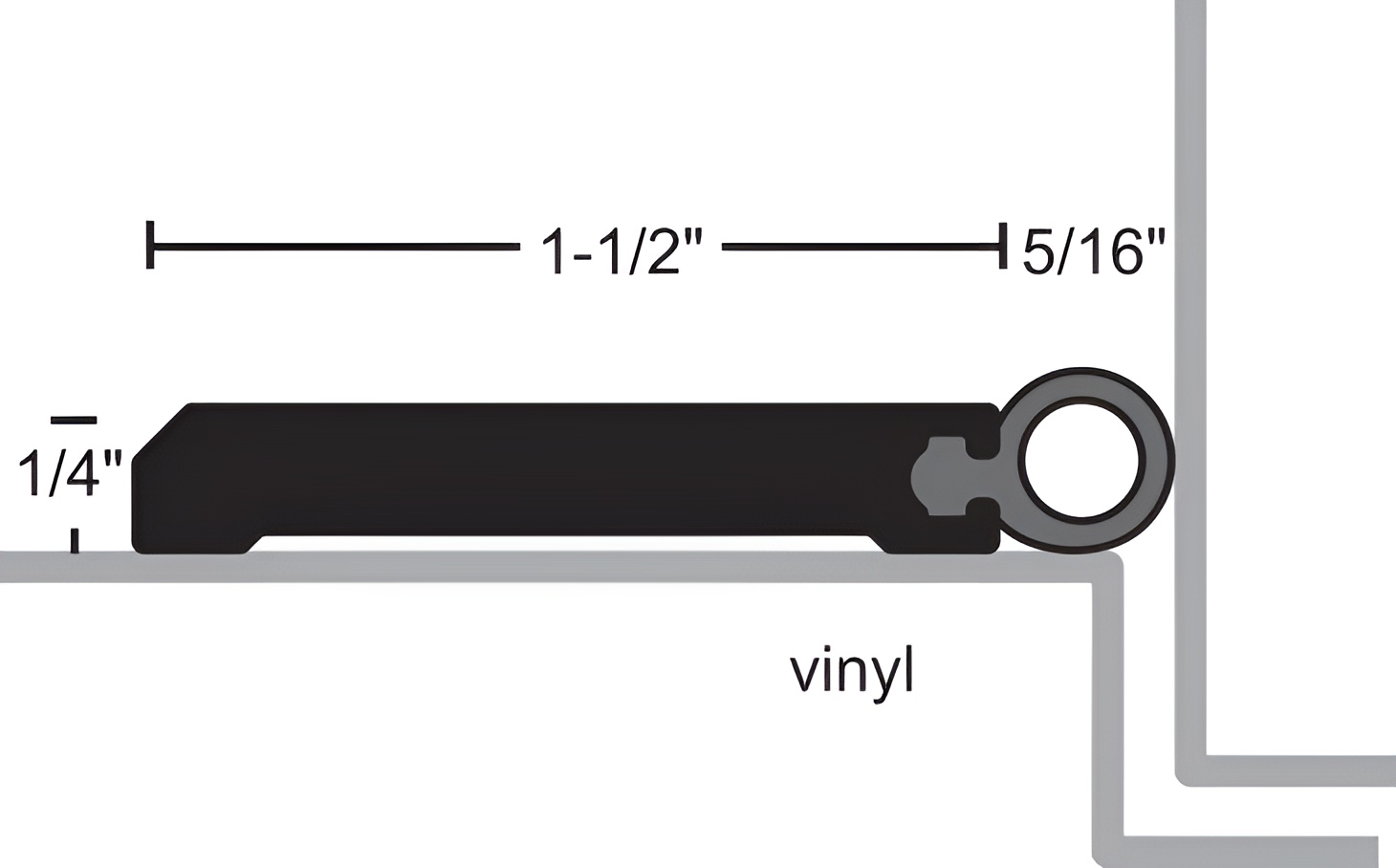

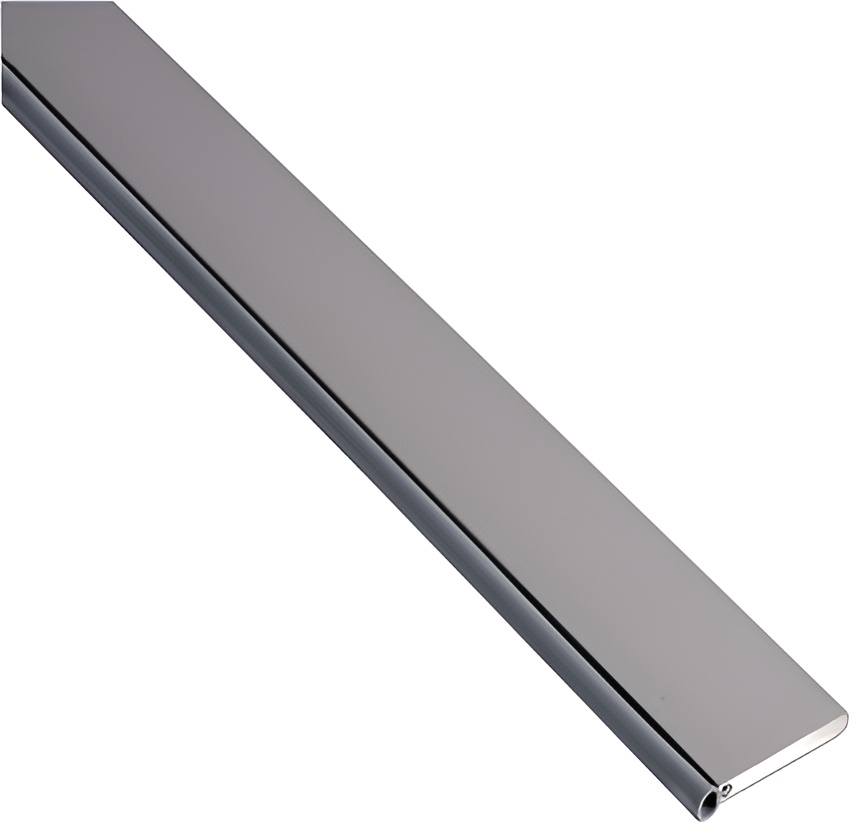

48" Mill Aluminum Vinyl Perimeter Seal
Color: Vinyl is black
Fasteners: Self drilling #8 (Tek type) screws furnished
Fire Rated: Flame resistant
Length: 48.0"
Material: Mill aluminum
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature range 0°F to 140°F
