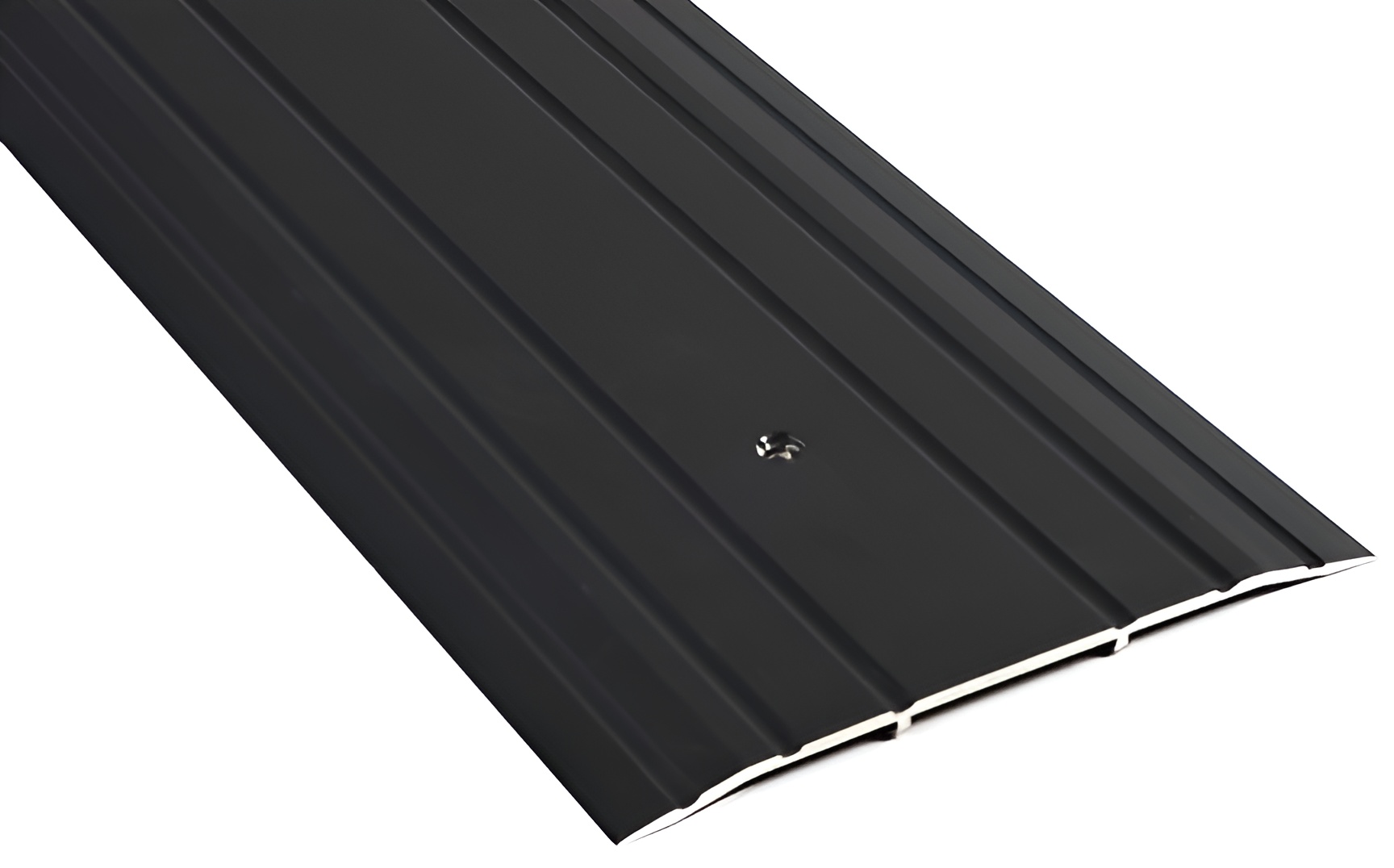

NGP 713DKB 60" DKB-finish Aluminum Saddle Threshold combines strength and functionality in a sleek design. Constructed from aluminum alloy 6063 in T5 temper, this threshold measures 7 inches wide and stands 1/4 inch tall, offering a robust solution for both commercial and residential applications. Its fluted top not only enhances aesthetic appeal but also provides traction, ensuring safety in high-traffic areas. This threshold is BHMA certified to ANSI/BHMA A156.21, capable of withstanding a load of up to 1,000 lbs., making it a reliable choice for heavy-duty use. Weighing just 1.01 lbs. per foot, it is easy to handle and install, with #10 x 1-1/2" FH zinc-plated wood screws included for convenience. The dark bronze finish adds a modern touch while ensuring durability against wear and tear. Additionally, the NGP 713DKB meets ADA compliance standards, making it an excellent choice for accessible design projects. With its certifications for fire door applications, including UL compliance, this threshold is suitable for installation in various settings, ensuring both safety and performance. Upgrade your space with the NGP 713DKB for a blend of style, strength, and compliance.
60" DKB-finish Aluminum Saddle Threshold, 1/4" x 7"
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Dimensions: 7" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.01 lbs./ft.
