NGP 8133DKB 60" Dark Bronze Aluminum Threshold Assembly Part is a versatile and durable solution designed for commercial restroom applications. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold assembly ensures long-lasting performance while maintaining an elegant dark bronze finish. Measuring 2" wide and 3/8" tall, it is lightweight at just 0.31 lbs./ft., making it easy to handle and install. This threshold assembly is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 for accessible buildings and facilities. Additionally, it is certified by UL to CAN/ULC-S104 and ANSI/UL10B, ensuring compliance with NFPA 80 and NFPA 252 for use with both hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. The NGP 8133DKB is also ANSI/BHMA certified, having passed a rigorous 1,000 lb. load test, which guarantees its reliability and performance in high-traffic environments. With its combination of strength, safety, and aesthetic appeal, this threshold assembly is an excellent choice for enhancing the functionality and accessibility of any commercial restroom space.
60" Dark Bronze Aluminum Threshold Assembly Part

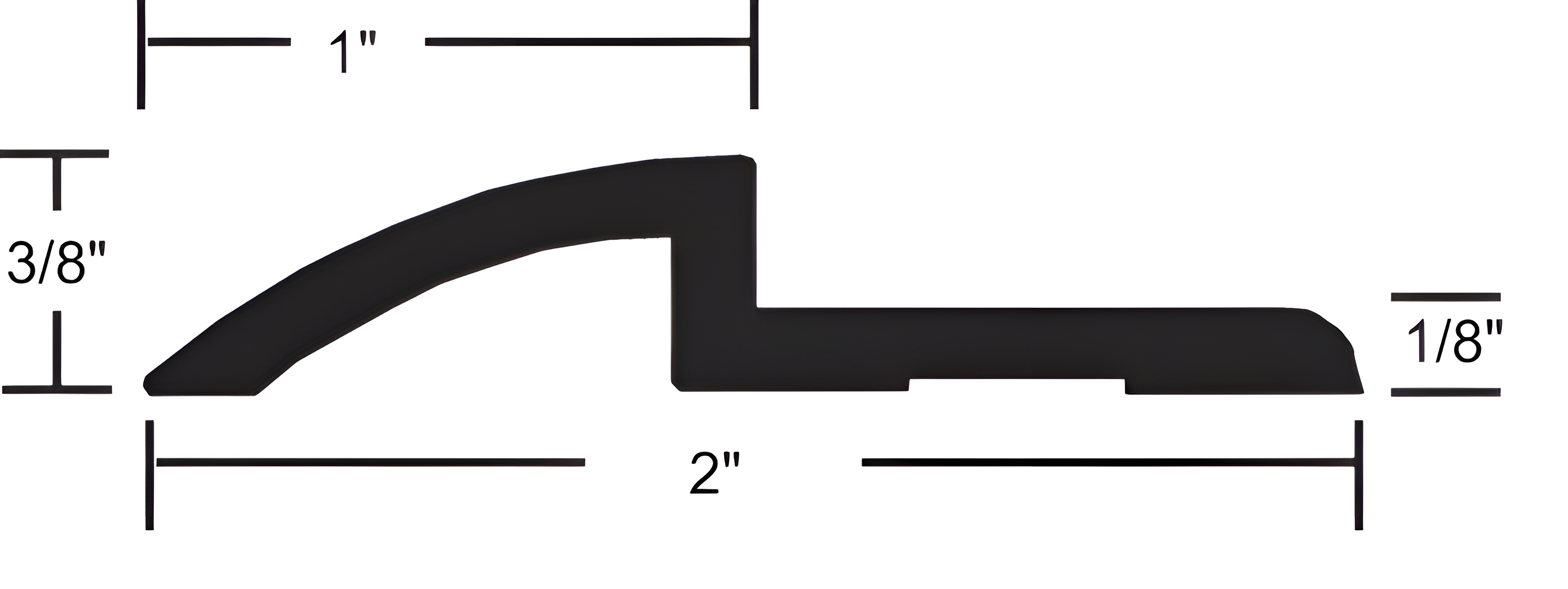

Dimensions: 2" wide x 3/8" tall
Finish: Dark bronze finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Weight: Weight: .31 lbs./ft.
