NGP 8135V 60" Aluminum Vinyl Bumper Seal Threshold, 1/2" x 3-3/4" is designed for both durability and functionality in commercial restroom applications. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold features a robust mill finish that ensures long-lasting performance. Measuring 3-3/4" wide and 1/2" tall, it effectively seals gaps, enhancing energy efficiency while minimizing air infiltration, as certified by ASTM E283. The NGP 8135V is equipped with a smooth top surface and a typical wall thickness of .115", providing a polished look while maintaining structural integrity. Each unit weighs .60 lbs./ft., making it manageable for installation. Included with the threshold are #10 x 1-1/2" FH zinc-plated wood screws, ensuring you have everything needed to secure the product effectively. This threshold is also UL certified for fire door applications, meeting safety standards for both hollow metal and wood fire doors rated up to 3 hours and 90 minutes, respectively. ANSI/BHMA certified for load-bearing capacity, it withstands up to 1,000 lbs., making it a reliable choice for high-traffic areas. With its black vinyl seal, the NGP 8135V not only performs well but looks great in any commercial restroom setting.
60" Aluminum Vinyl Bumper Seal Threshold, 1/2" x 3-3/4"
Color: Vinyl is black

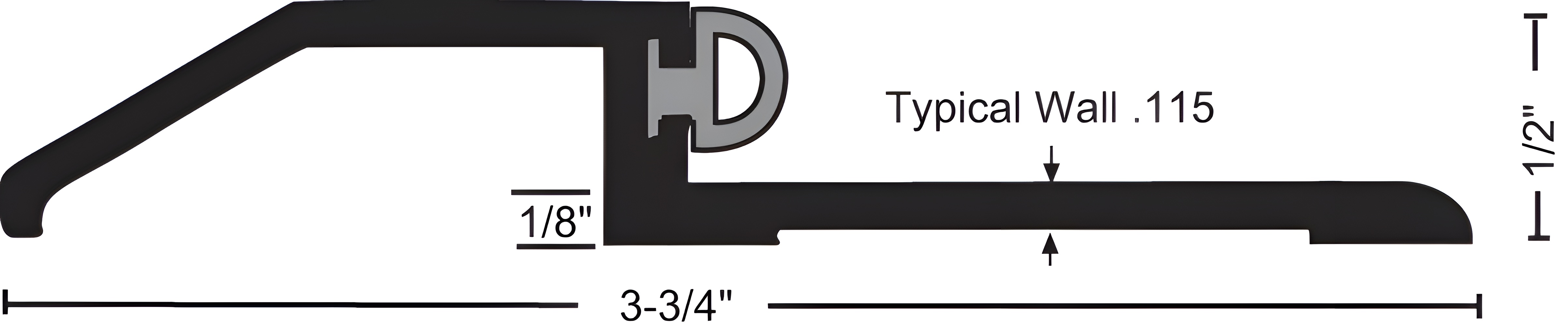

Dimensions: 3-3/4" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standard-3: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Wall Thickness: Typical wall thickness .115"
Weight: Weight: .60 lbs./ft.
