NGP 8136BR 60" Bronze Bar Support, 1/4" x 1-1/8" is a robust solution designed to enhance the durability and functionality of your commercial restroom partitions. Crafted from Alloy CDA 385 (Copper Alloy No. C38500), this bar support features an architectural bronze satin finish (728), which not only adds an elegant touch but is also similar to the US4 standard. Measuring 1-1/8" in width and 1/4" in height, this bar support is lightweight at just .89 lbs./ft. Ideal for easy installation, the product is supplied undrilled unless a template is provided, allowing for customization based on your specific needs. Additionally, threshold assembly components can be ordered separately, enabling field assembly or a welded option from NGP's custom fabrication shop with a tolerance of +/- 1/16". This product meets ADA compliance standards for accessible design, ensuring barrier-free access in restrooms. Furthermore, it is certified by UL for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated for up to 90 minutes. The NGP 8136BR is a dependable choice for building professionals seeking reliability and style in restroom partition hardware.
60" Bronze Bar Support, 1/4" x 1-1/8"

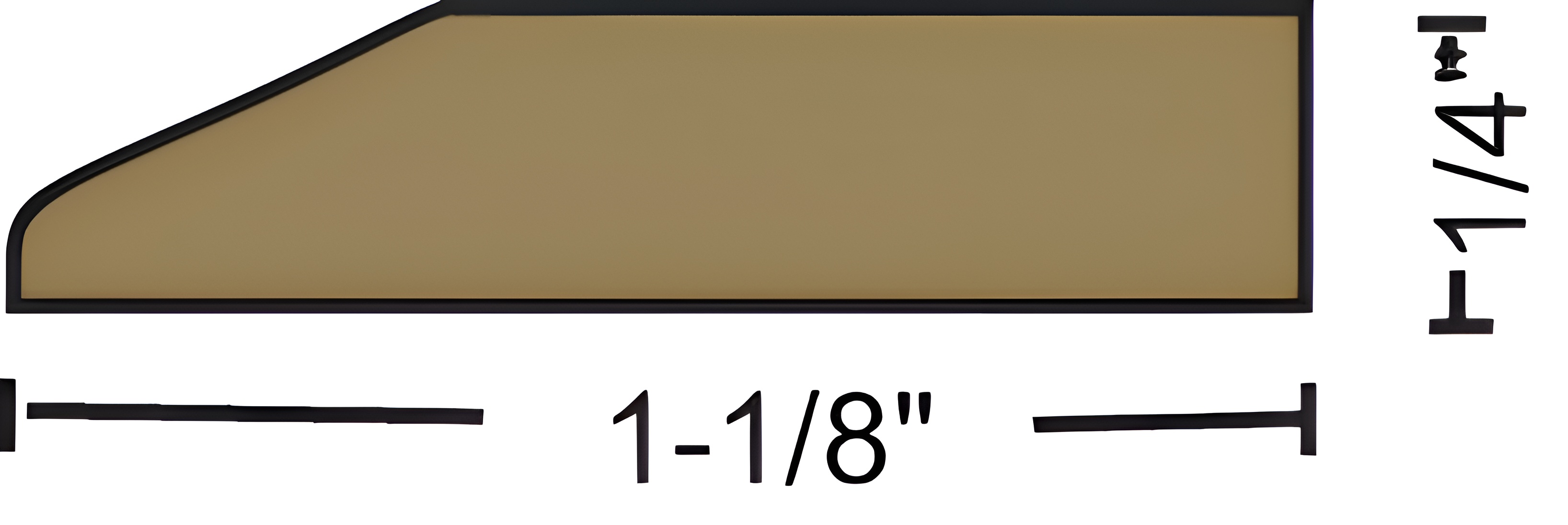

Dimensions: 1-1/8" width x 1/4" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Length: 60.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Weight: Weight: .89 lbs./ft.
