NGP 8143 48" Aluminum Threshold Assembly Part is designed for durability and compliance, making it an ideal choice for commercial restroom settings. Crafted from high-quality aluminum alloy 6063 in T5 temper, this threshold measures 3 inches wide and stands 1/4 inch tall, providing a reliable barrier for accessible design. With its mill finish, it seamlessly integrates into various environments while ensuring a sleek appearance. This threshold assembly can be used with either the fluted or smooth side facing up, offering versatility for different installation preferences. It is supplied undrilled, allowing for customization based on specific project needs, although it can be ordered for field assembly or as a welded unit. Weighing just 0.75 lbs. per foot, it is lightweight yet robust, making installation straightforward. Included with the threshold are #10 FH zinc-plated wood screws, ensuring a secure fit. Importantly, the NGP 8143 is ADA compliant and certified by UL for fire door applications, adhering to strict safety and accessibility standards. With its impressive specifications and reliable construction, this threshold assembly is an essential component for any commercial restroom project, providing both functionality and peace of mind.
48" Aluminum Threshold Assembly Part, 1/4" x 3"

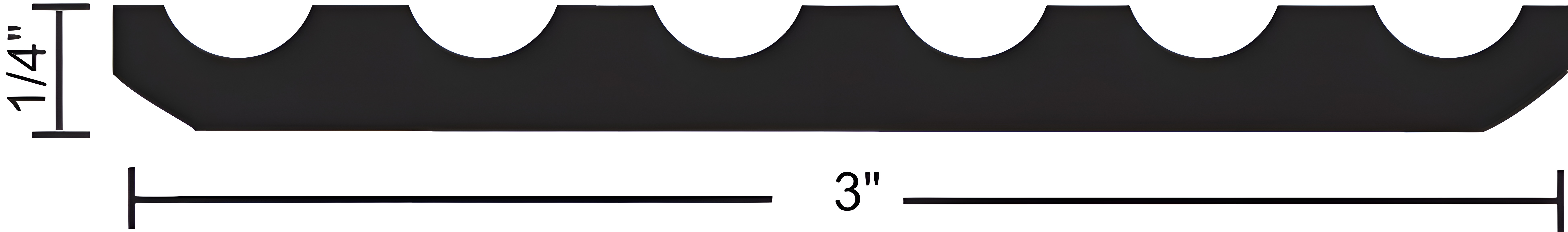

Dimensions: 3" wide x 1/4" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Mill finish
Length: 48.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Weight: Weight: .75 lbs./ft.
