NGP 8144BR 96" Bronze Threshold Assembly Part is expertly crafted from Alloy CDA 385, ensuring durability and longevity for commercial restroom applications. With dimensions of 4" width and a height of 1/4", this threshold assembly is designed to provide a reliable barrier while maintaining an elegant architectural bronze satin finish (similar to US4). Weighing 2.88 lbs./ft., it offers a sturdy presence that is both functional and stylish. This versatile threshold can be installed with either the fluted or smooth side facing up, allowing for customization based on aesthetic preferences. For added convenience, all components may be ordered separately for field assembly or can be welded into one piece at NGP's custom fabrication shop. It's supplied undrilled, unless a specific template is provided, ensuring a tailored fit for your project needs. The NGP 8144BR is also ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, making it an excellent choice for barrier-free applications. Additionally, it is certified by UL for fire door applications, complying with NFPA standards, which guarantees safety and reliability in high-traffic environments. When ordering, please be aware of shipping limitations for items measuring 96" or more, as they may incur additional fees.
96" Bronze Threshold Assembly Part, 1/4" x 4"
Ship via: No UPS - Common Carrier Only

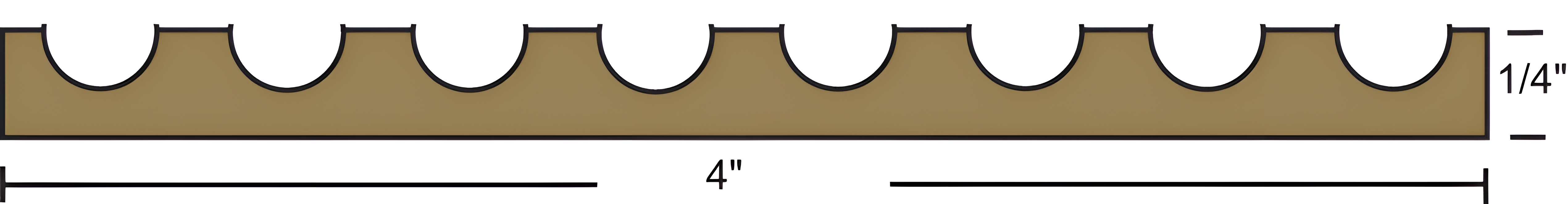

Dimensions: 4" width x 1/4" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Length: 96.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Weight: Weight: 2.88 lbs./ft.
