NGP 8144DKB 36" DKB-finish Threshold Assembly Part is a robust and versatile solution designed for commercial restroom applications. Constructed from high-quality aluminum alloy 6063 in T5 temper, this threshold assembly measures 4" wide and 1/4" tall, making it an ideal choice for ensuring smooth transitions between spaces. The threshold can be installed with either the fluted or smooth side facing up, offering flexibility based on your aesthetic preferences. It is supplied undrilled, allowing for customization during installation, and can be ordered separately for field assembly or welded into one-piece units. Each assembly comes with #10 FH zinc-plated wood screws for secure installation. The dark bronze finish not only enhances the visual appeal but also contributes to its durability. This product is ADA compliant, ensuring that it meets accessibility standards as outlined in the ADA Standard for Accessible Design. Additionally, it holds various certifications, including UL certification for fire doors and compliance with ANSI/BHMA standards, guaranteeing its reliability and performance. Weighing only 1.00 lbs./ft., the NGP 8144DKB is easy to handle and install, making it a smart choice for building professionals and knowledgeable homeowners alike.
36" DKB-finish Threshold Assembly Part, 1/4" x 4"

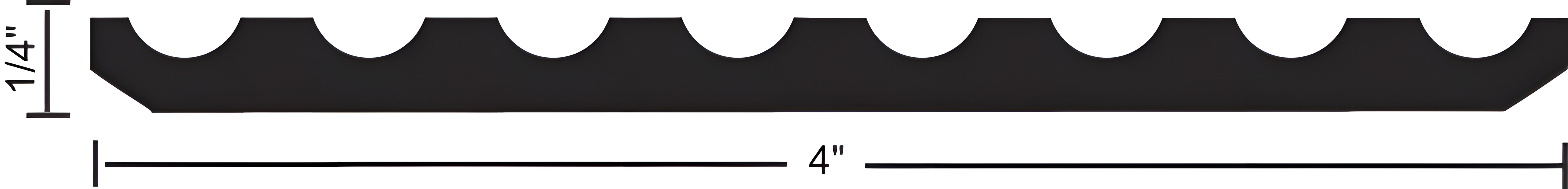

Dimensions: 4" wide x 1/4" tall
Fasteners: #10 FH zinc plated wood screws included
Finish: Dark bronz finish
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Weight: Weight: 1.00 lbs./ft.
