NGP 898N 60" ADA Compliant NGP-TPV Half Saddle Threshold offers an effective solution for enhancing accessibility in commercial spaces. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold measures 5" wide and 1/2" tall, making it ideal for seamless transitions between rooms while adhering to ADA compliance standards. When installed with the non-beveled edge flush with the flooring, or where there is no greater than a 1/4" vertical rise, it ensures barrier-free access. Weighing just 0.72 lbs. per foot, it’s lightweight yet robust enough for high-traffic areas. The mill finish provides a sleek look, while the NGP-TPV version is available in black for a more contemporary aesthetic. Included with the threshold are #10 x 1-1/2" FH zinc-plated wood screws for easy installation. This product is not only compliant with the ADA Standard for Accessible Design, but it also meets various fire safety standards, certified for use with hollow metal and wood fire doors. With its reliable design and attention to detail, the NGP 898N is an essential addition for any restroom or commercial environment prioritizing safety and accessibility.
60" ADA Compliant NGP-TPV Half Saddle Threshold, 1/2" x 5"
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
Color: NGP-TPV is black

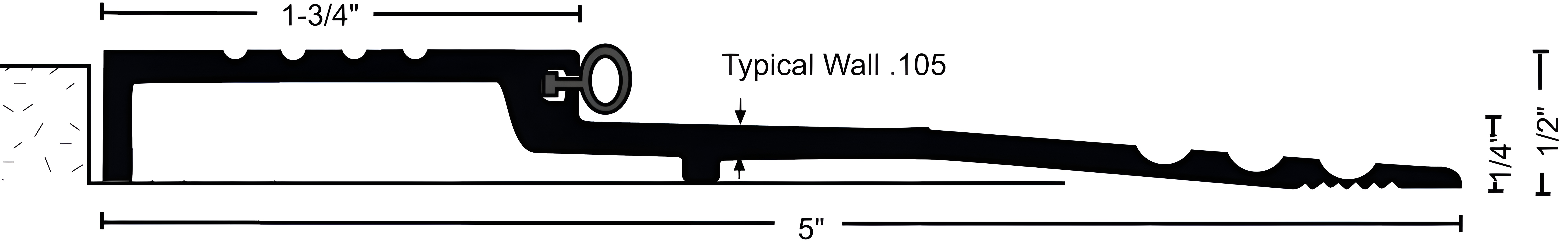

Dimensions: 5" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Wall Thickness: Typical Wall Thickness: .105"
Weight: Weight: .72 lbs./ft.
