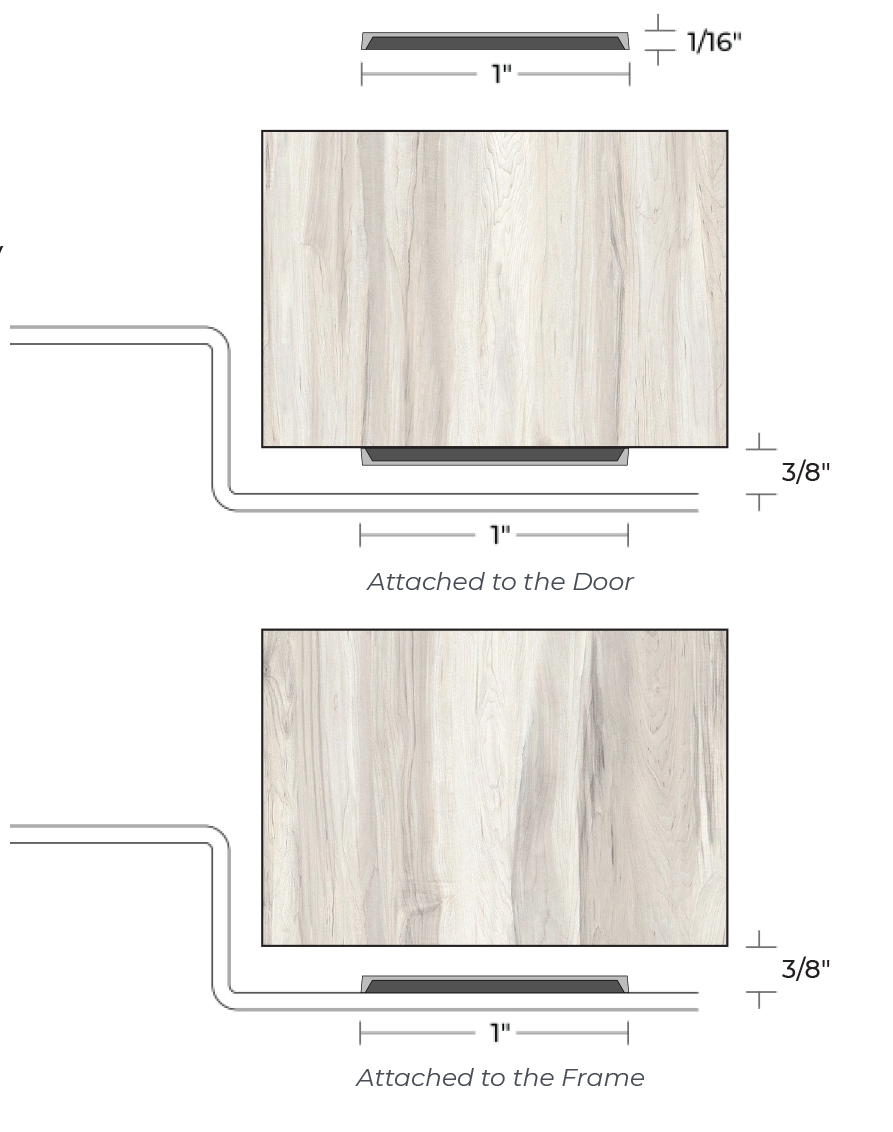

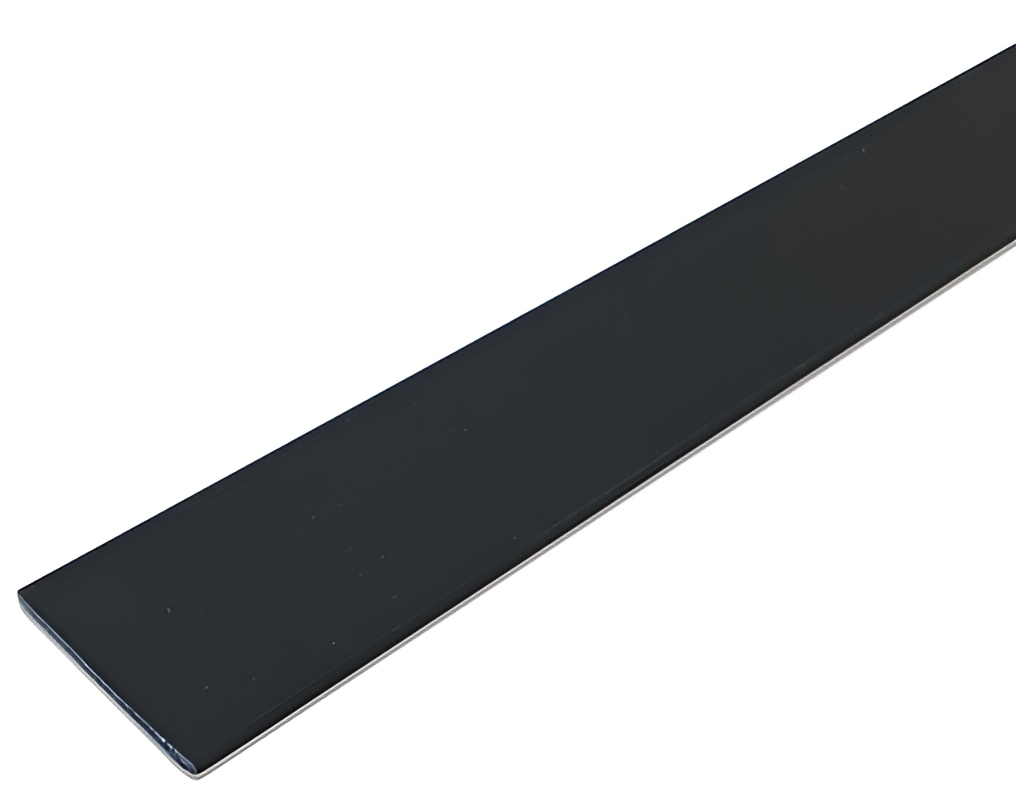

NGP 9200C 36" Gap Solution for Excessive Fire Door and Frame Clearances is a UL Certified accessory designed to address excessive door and frame clearances measuring up to 3/8". Ideal for use with 20 and 45-minute rated UL10B and UL10C wood or hollow metal fire doors, this product ensures optimal performance and safety. Crafted from NGP's specialized intumescent materials, it expands at 275ºF, increasing up to 20 times its original thickness to effectively seal gaps around doors during a fire, enhancing safety and compliance. To ensure proper latchbolt engagement, pairing with an NGP Strike Shim 9275 or 9225 is recommended. The modified acrylic pressure-sensitive adhesive offers high initial adhesion and long-term holding power, making it suitable for both exterior and interior applications. Its resistance to aging, UV radiation, water, and various chemicals guarantees durability in various environments. With a temperature range of -30°F to 250°F for long-term exposure, this gap solution is designed to withstand extreme conditions. Sold by the foot, with a minimum of 3' and available in a charcoal color, the NGP 9200C is an essential choice for maintaining fire door safety and compliance in commercial settings.
36" Gap Solution for Excessive Fire Door and Frame Clearances - Up to 45 Minutes
Color: Charcoal
Fire Rated: NGP Intumescent Materials are Formulated to Expand at 275ºF up to 20 Times Their Original Thickness; Completely Sealing the Gap Around and Between Doors During a Fire
Length: 36.0"
Resistance: Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
Standard-0: CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door and frame clearances, measuring up to 3/8".
Standard-1: CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door and frame clearances, measuring up to 3/8".
Temperature Range: End Use Temperature Range of Adhesive, Long-Term Exposure -30°F up to 250°F
