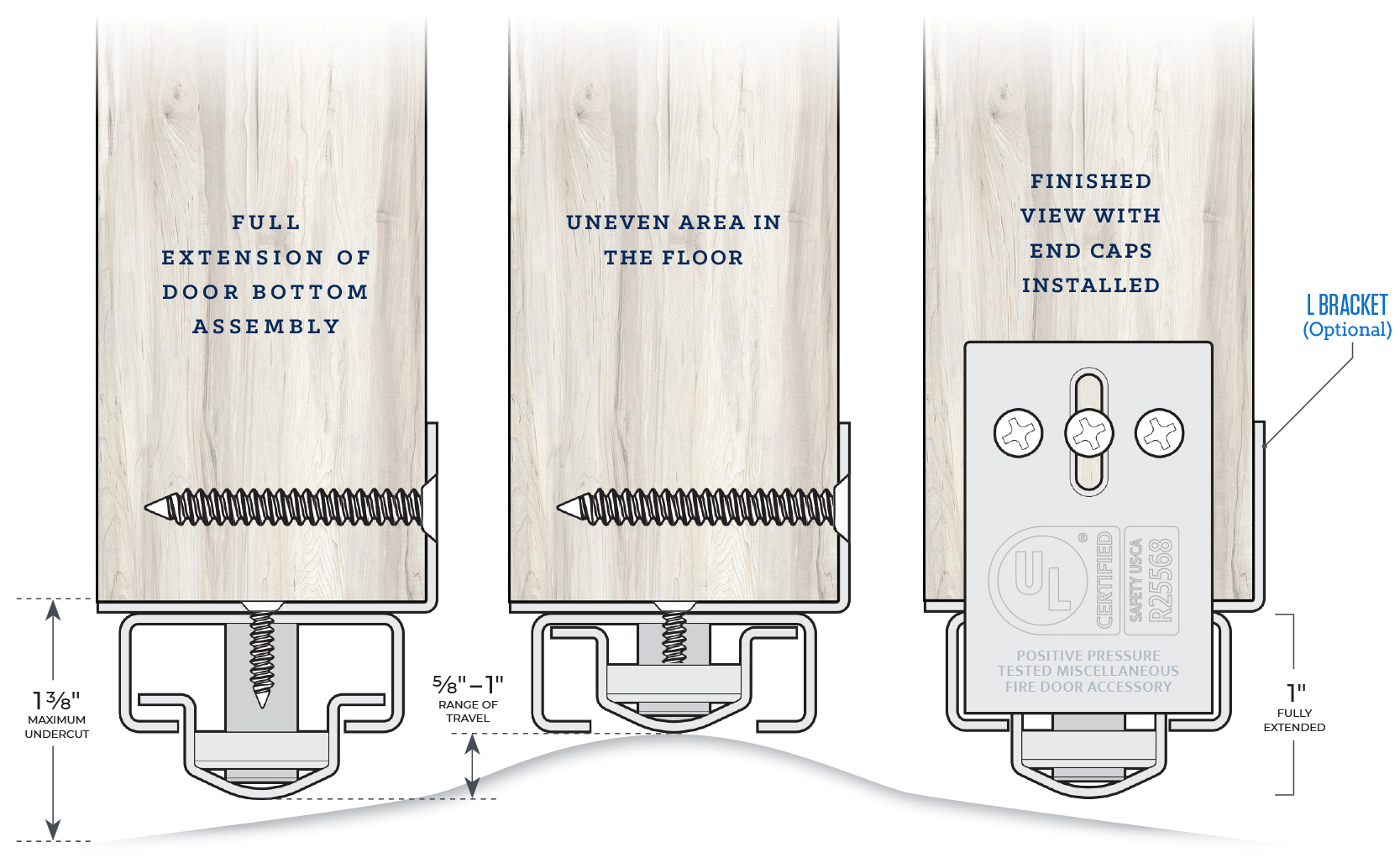

NGP 9595DKB 36" Door Bottom Gap Solution offers a reliable and UL Certified solution for fire doors with excessive clearance between the bottom of the door and the finished floor, accommodating gaps up to 1-3/8". This versatile product is certified for use on both hollow metal and wood fire-rated doors, providing protection for up to 90 minutes. Designed to be non-handed, the NGP 9595DKB features an innovative L-bracket that allows for installation while the door remains on its hinges, streamlining the process. It can be trimmed in the field by up to 1-1/2" per side, offering adaptability to various door sizes. With a capability to travel over uneven floors with a range of 3/8", this solution ensures smooth operation. Minimizing visibility, the hardware can be fastened to the underside of the door's bottom rail, and the end caps not only set the height position but also provide a polished look. Made from durable 16-gauge and 18-gauge steel, this product is powder-coated in a sleek matte black finish, ensuring both longevity and aesthetic appeal. With sizes available in 36", 42", and 48", the NGP 9595DKB is patented (US Patent US 11,761,262 B2) and certified for use in both the US and Canada, making it a top choice for commercial restroom applications.
36" Fire Door Bottom Gap Solution
Application: Designed to Travel Over Uneven Floors, with a Range of 3/8"
Certifications: Certified for use in US and Canada
Finish: Finish: Powder Coated: Matte Black
Fire Rated: Application Certified on Both Hollow Metal and Wood Fire-Rated Doors – up to 90-Minutes
Gauge: Product consists of: L-Bracket, 16-Gauge Steel, Embossed with UL Mark, Door Bottom Assembly, 18-Gauge Steel, End Caps, 18-Gauge Steel, Embossed with UL Mark
Handing: Non-Handed
Length: 36.0"
Patented: Patented: US Patent US 11,761,262 B2
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door bottom undercut/clearances, measuring up to 1-3/8"
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/10C, complies with IBC, NFPA 80 and NFPA 252 for applications to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door bottom undercut/clearances, measuring up to 1-3/8"
