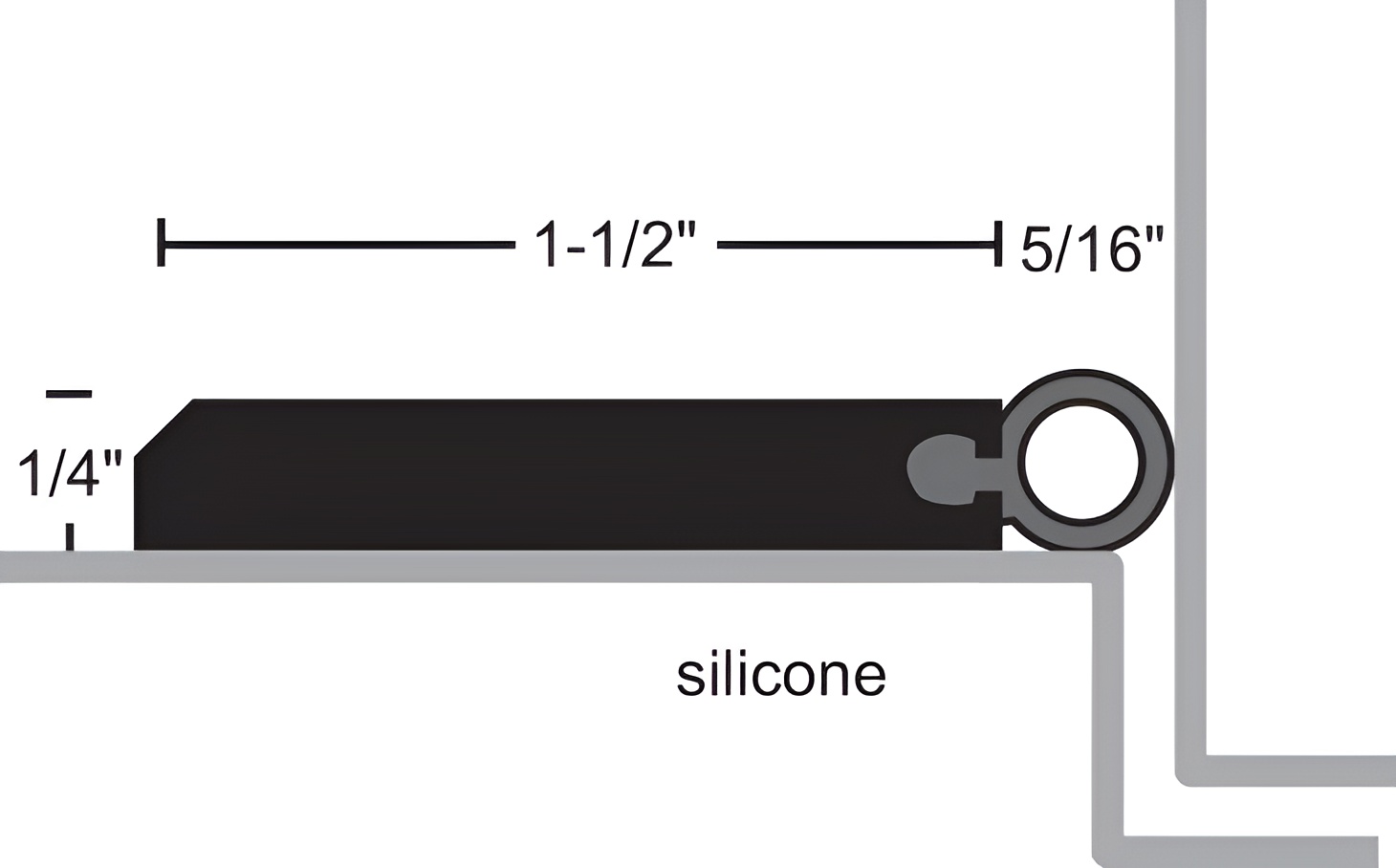

NGP 9700DKB 72" DKB-finish Aluminum Silicone Perimeter Seal is engineered for superior performance in commercial restroom applications. Crafted from durable aluminum alloy 6063 with T5 temper, this perimeter seal ensures longevity and resilience. The synthetic rubber polymer, Siloxane, provides excellent flexibility and memory, making it adaptable to various conditions while remaining flame and moisture resistant. With a remarkable temperature range of -100°F to 500°F, the NGP 9700DKB retains its flexibility even in extreme environments. It showcases outstanding resistance to ozone, UV light, and aging, making it ideal for high-traffic areas. This product is particularly recommended for environments utilizing FM200 or Halon Fire Suppression Systems, ensuring optimal safety and compliance. The seal is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air, and smoke infiltration, giving you peace of mind regarding its effectiveness. Installation is straightforward, with self-drilling #8 screws provided for convenience. The dark bronze finish adds an aesthetically pleasing touch while effectively sealing gaps to enhance energy efficiency and comfort. Choose the NGP 9700DKB for a reliable and efficient sealing solution that meets the rigorous demands of commercial restroom environments.
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
Color: Silicone is black
Fasteners: Self drilling #8 (Tek type) screws furnished
Finish: Dark bronze finish
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 72.0"
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
