NGP H612DKB 48" DKB-finish Aluminum Nylon Brush Seal or Sweep is a robust solution for effective smoke and draft control. Constructed from high-quality aluminum alloy 6063 in T5 temper, this door sweep ensures durability and long-lasting performance. The synthetic polymer, polyamide, offers excellent abrasion resistance, flexibility, and memory, making it a reliable choice for various applications. Designed specifically for Category H Smoke & Draft Control, the H612DKB features a black nylon brush that effectively retains insecticides and provides a moisture-resistant barrier. With a temperature range of -70°F to 425°F, it performs well under extreme conditions. The product is REACH and RoHS compliant, affirming its commitment to safety and environmental standards. Installation is straightforward, thanks to the furnished #6 x 3/4" stainless steel sheet metal screws and slotted screw holes that allow for easy adjustments. Finished in a sleek dark bronze, the H612DKB not only meets functional needs but also complements the aesthetic of commercial restroom spaces. Certified by UL for use on both hollow metal and wood fire doors, this door sweep is ideal for enhancing safety and efficiency in your building.

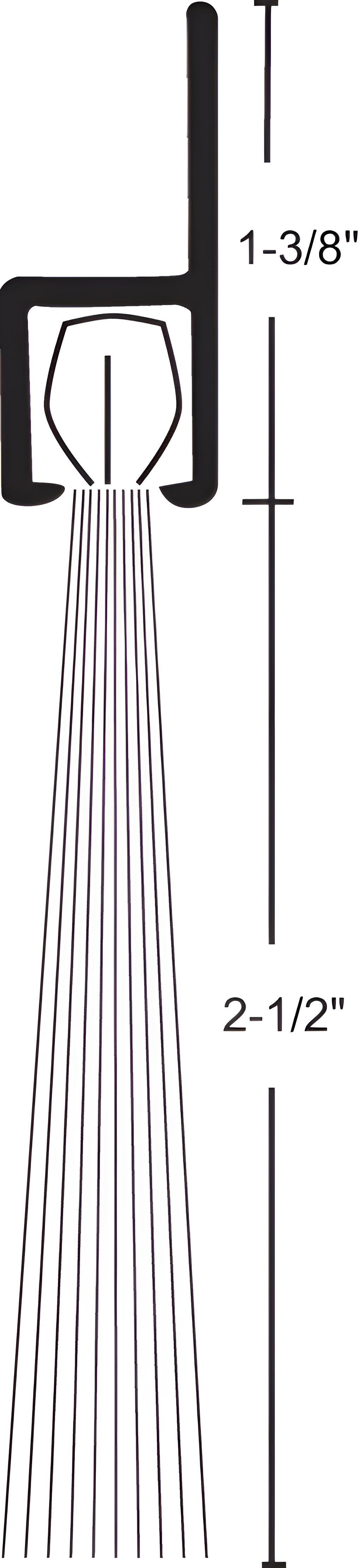

48" DKB-finish Aluminum Nylon Brush Seal or Sweep
Application: Door Sweep application is Category H Smoke & Draft Control
Color: Nylon brush is black
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Dark bronze finish
Length: 48.0"
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: SMOKE & DRAFT CONTROL GASKETING. Door Sweep Application only. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range -70°F to 425°F
