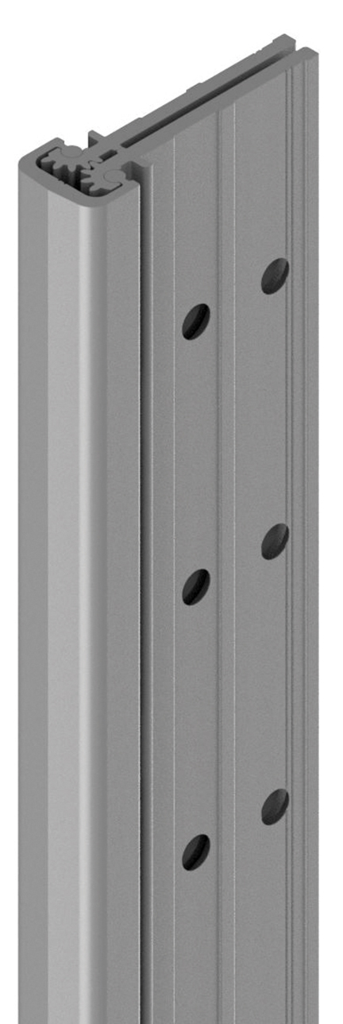

NGP HD1100A 119" Concealed Continuous Geared Hinge offers a seamless solution for your commercial restroom partitions, featuring a robust aluminum alloy construction of 6063-T6, anodized after machining for enhanced durability. Designed with specially engineered involute intermeshing gears, this hinge ensures smooth operation while the proprietary Teflon infused self-lubricating wear-resistant bearings minimize maintenance needs. With a length of 119 inches, the HD1100A is ideal for flush mount applications on 1-3/4" doors, eliminating the need for hinge reinforcement except in specific cases involving extremely heavy, high-frequency, or extra-wide doors. It supports door weights up to 1,000 lbs, featuring a lead-lined dual-row hole pattern for stability. This hinge is ANSI/BHMA certified to A156.26, Grade 1, accommodating doors up to 600 lbs and is fire-rated for 90 minutes on hollow metal or wood door leafs up to 4'0". The product comes with a lifetime warranty for the door opening, ensuring confidence in its long-term performance. Please note that shipping may require common carrier due to size, and additional fees may apply for items exceeding standard package dimensions.
Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 1-3/4" Doors
Ship via: No UPS - Common Carrier Only
Alt Part No: 257159
Application: No Hinge Reinforcement Necessary Except on Extremely Heavy, Extremely High-Frequency or Extra-Wide Doors
Category: Hinges
Fasteners: #12-24 TEK MS
Length: 119"
Material: Aluminum Alloy 6063-T6; Anodized After Machining
Resistance: Proprietary Teflon Infused Self-Lubricating Wear-Resistant Bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0
Warranty: Lifetime of the Door Opening Warranty
