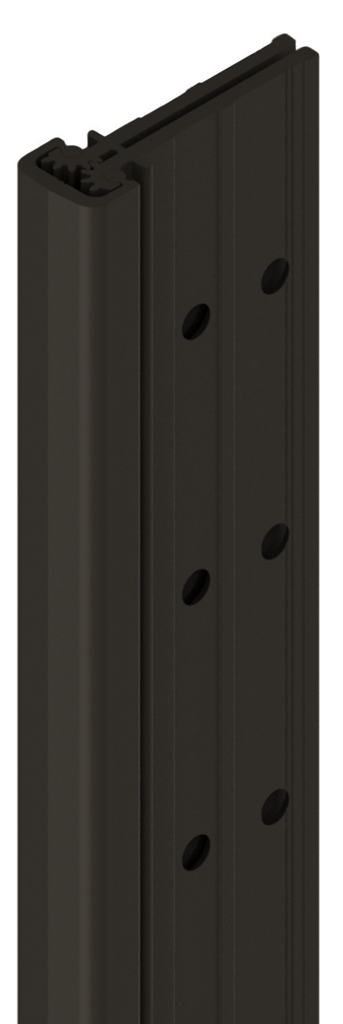

NGP HD1100DKB 119" Concealed Continuous Geared Hinge offers a robust solution for seamless door operation, designed specifically for 1-3/4" doors. Constructed from high-quality aluminum alloy 6063-T6 and featuring a dark bronze anodized finish, this hinge not only provides strength but also enhances the aesthetic appeal of your commercial restroom. One of the standout features of the HD1100DKB is its specially designed involute intermeshing gears, which work in conjunction with proprietary Teflon-infused self-lubricating wear-resistant bearings. This advanced design ensures smooth operation while significantly reducing maintenance needs. Importantly, no hinge reinforcement is required under normal circumstances, making installation straightforward and hassle-free, except for extremely heavy or high-frequency doors. With a generous length of 119 inches, this hinge is ANSI/BHMA Grade 1 certified for up to 600 lbs and is fire-rated for 90 minutes on compatible doors. The product comes with a lifetime warranty for the door opening, ensuring long-lasting performance and reliability. Please note that shipping may require common carrier options due to the size of the product. For additional specifications, refer to the installation instructions for door sizing requirements.
Concealed Continuous Geared Hinge No Door Inset, Flush Mount for 1-3/4" Doors
Ship via: No UPS - Common Carrier Only
Alt Part No: 257165
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Category: Hinges
Fasteners: #12-24 TEK MS
Finish: Dark bronze anodized finish
Length: 119"
Material: Aluminum alloy 6063-T6; Anodized after machining
Resistance: Proprietary teflon infused self-lubricating wear resistant bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0
Warranty: Lifetime of the door opening warranty
