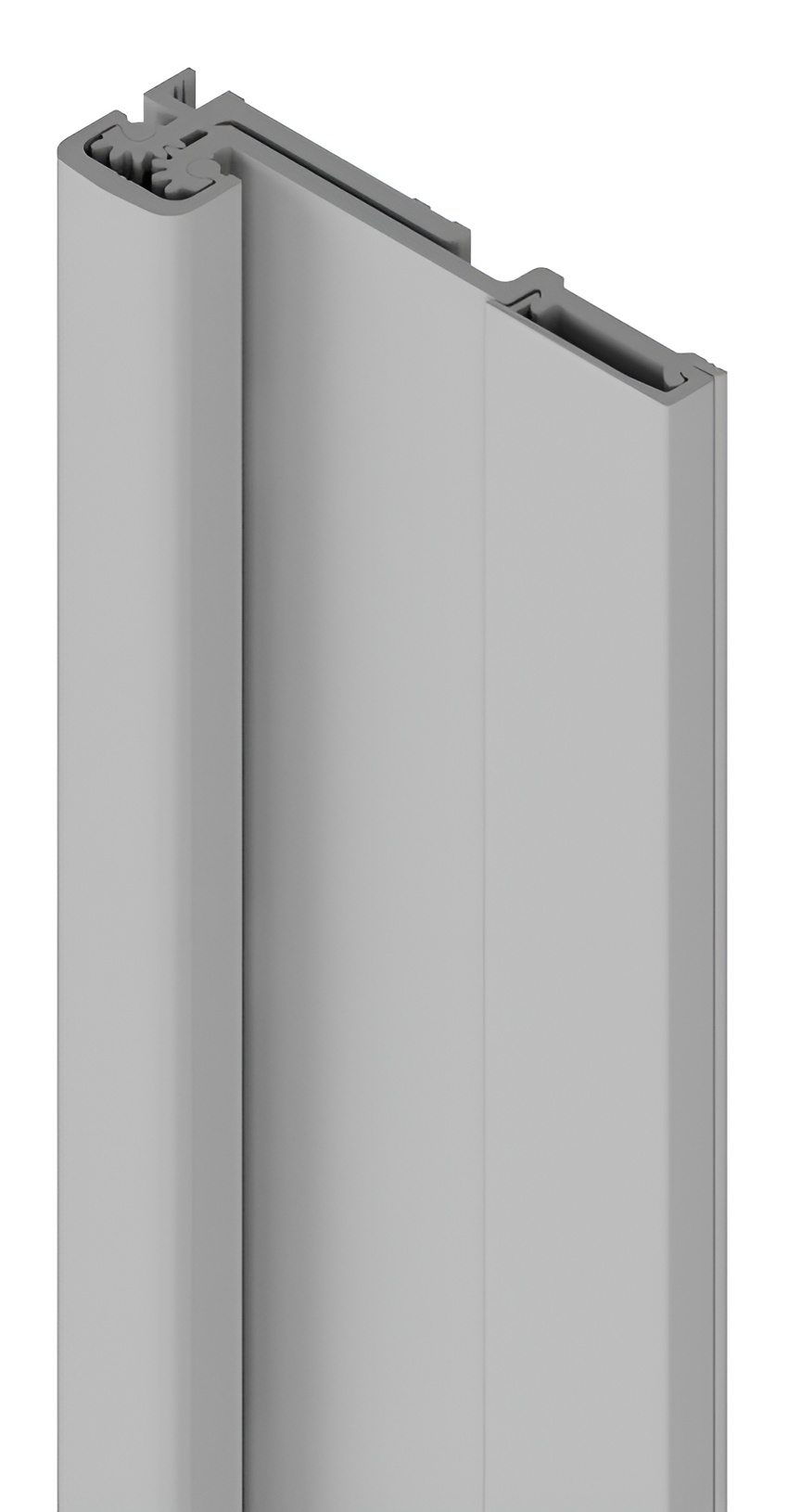

NGP HD2100A 119" Full Surface Swing Clear Continuous Geared Hinge is expertly crafted from aluminum alloy 6063-T6 and features an anodized finish that enhances durability and aesthetics. Engineered with specially designed involute intermeshing gears, this hinge ensures smooth operation and longevity. Its proprietary Teflon-infused, self-lubricating bearings are wear-resistant, minimizing maintenance needs for high-traffic areas. This continuous hinge is ideal for doors measuring 1-3/4" to 2-1/4" thick, with a standard length of 119". Notably, no hinge reinforcement is required for most applications, making installation straightforward. However, it is recommended for extremely heavy, high-frequency, or extra-wide doors. The NGP HD2100A is ANSI/BHMA certified to A156.26 Grade 1 standards, supporting doors up to 600 lbs. and providing fire-rated performance for 90 minutes on hollow metal or wood doors. Backed by a lifetime warranty of the door opening, this hinge offers peace of mind for building professionals and homeowners alike. Keep in mind that shipping may incur additional fees for larger items, so it's wise to consult customer service for details. The NGP HD2100A is the perfect solution for your commercial restroom partition needs, combining strength, reliability, and ease of use.

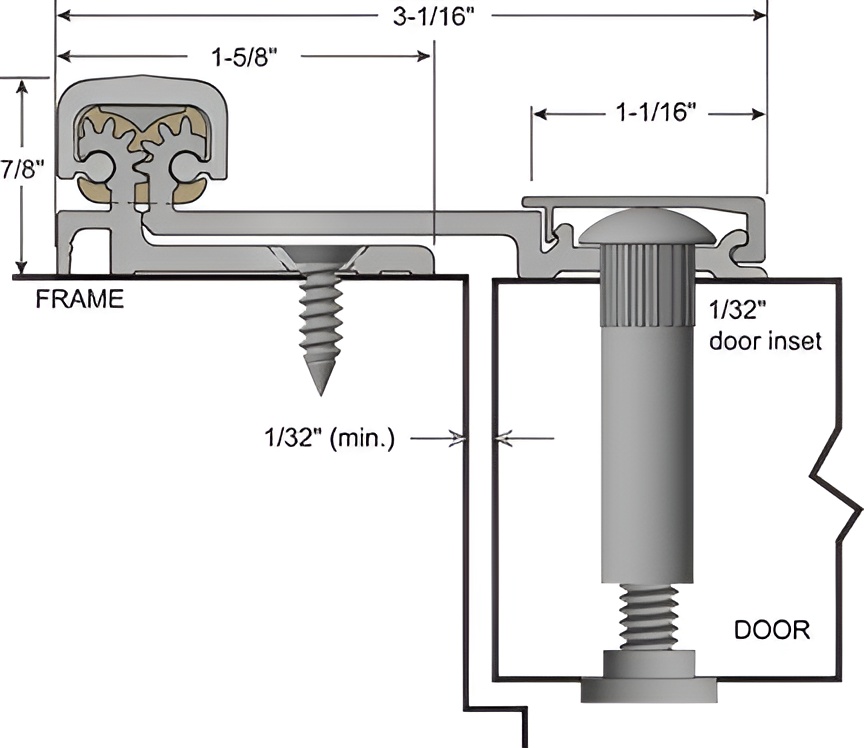

Full Surface Swing Clear Continuous Geared Hinge 1/32" Door Inset for 1-3/4" to 2-1/4" Doors
Ship via: No UPS - Common Carrier Only
Alt Part No: 257195
Application: No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
Category: Hinges
Finish: Anodized aluminum finish
Length: 119"
Material: Aluminum alloy 6063-T6; Anodized after machining
Resistance: Proprietary teflon infused self-lubricating wear resistant bearings
Sales Unit: EA
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Standard-1: Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".
Warranty: Lifetime of the door opening warranty
