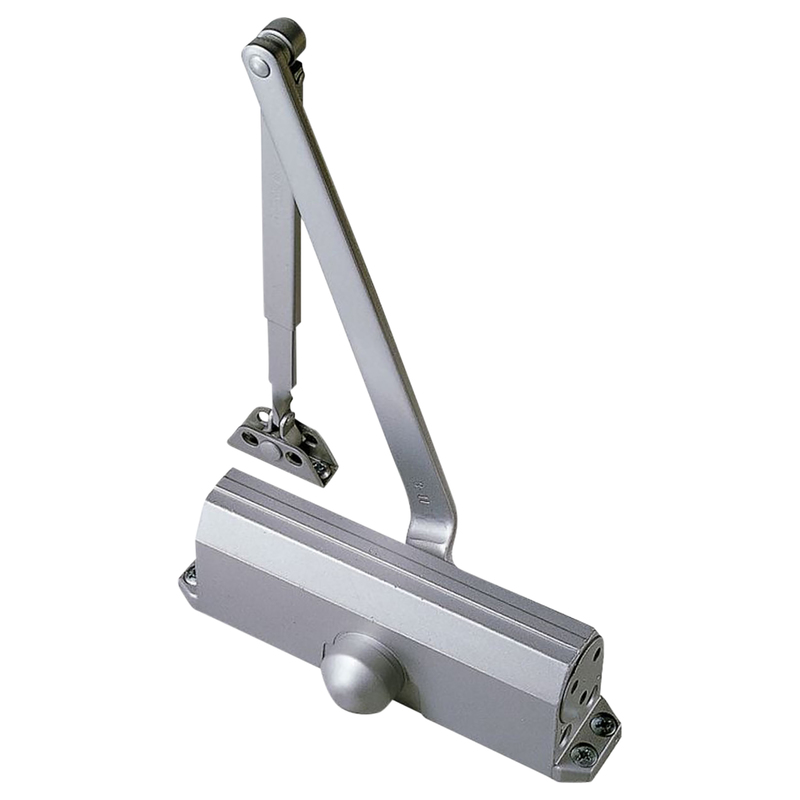

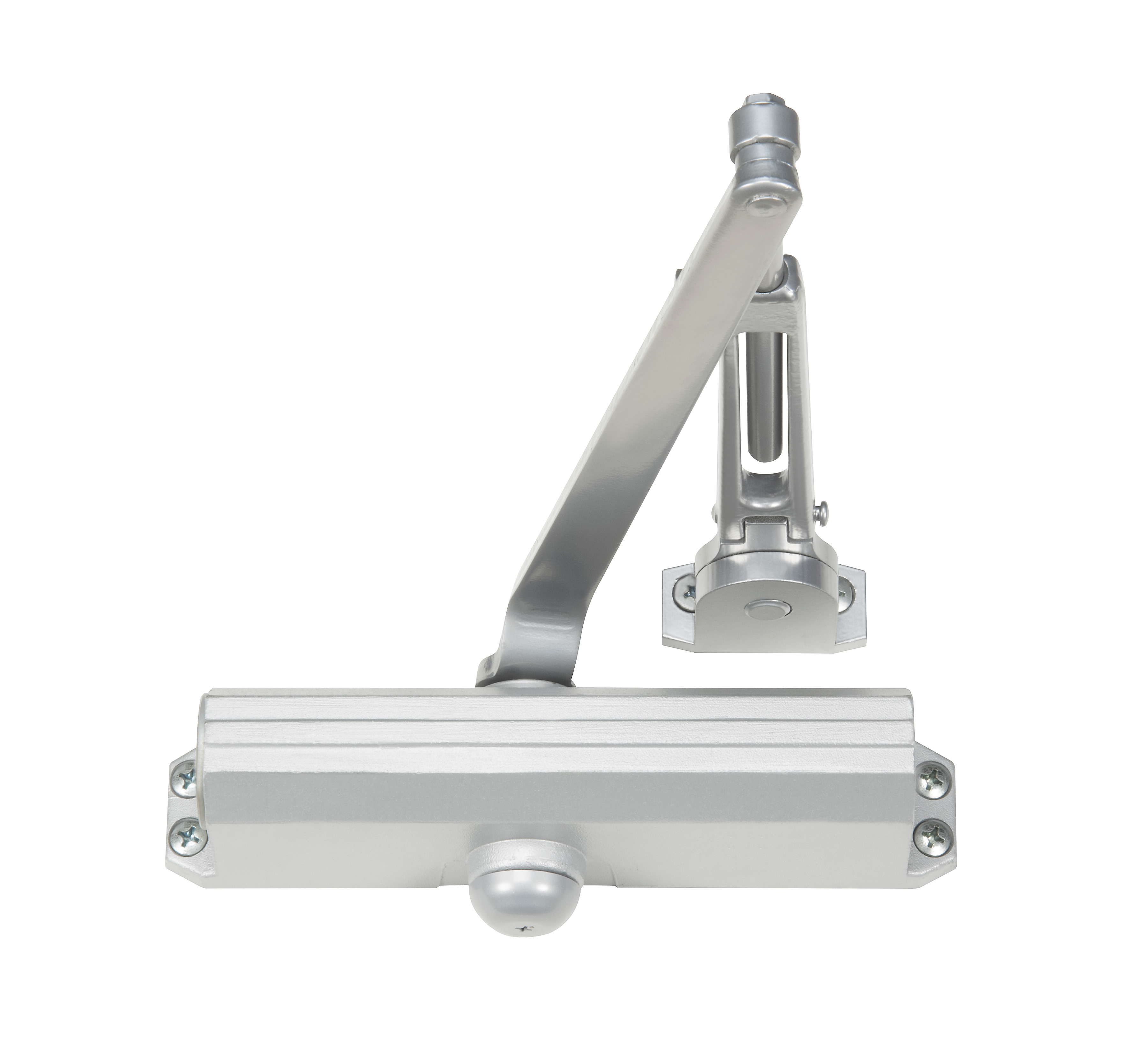

Norton Closers 1601H689 Adjustable Hold Open Medium Duty Surface Mounted Door Closer with Sex Nuts features a robust design that ensures exceptional performance and reliability for various door applications. Engineered with a rack and pinion mechanism, this closer not only exceeds 25 million cycles in internal testing but also incorporates a corrosion-resistant aluminum finish that guarantees durability in high-traffic environments. This surface-mounted closer boasts an adjustable spring size from 1 to 6, making it versatile enough to accommodate different door weights and sizes. Its non-handed design simplifies installation, allowing for quick and efficient setup on the pull side of doors. The molded plastic cover provides an aesthetically pleasing finish while safeguarding the internal components from dust and debris. Designed for both functionality and longevity, the Norton 1601 series includes an adjustable backcheck to protect walls and door frames from damage. The 3/4" x 9-1/16" rectangular mounting hole pattern ensures compatibility with various door setups. With a limited 15-year manufacturer warranty, this closer is a reliable choice for building professionals and homeowners alike, providing peace of mind in its performance and quality.
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability. Norton Door Controls refined the rack and pinion closer and the concept of valve controlled backcheck for hydraulic door closers. Along the way there have been a variety of other innovations, including aluminum alloy body, narrow style, non-handed closers, adjustable backcheck, speed adjustments and special application arms.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Alternate Codes: 1601H689, NOR1601H 689
Ansi: ANSI/BHMA A156.4, Grade 1 Certified
Application: CM
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Category: Door Closers and Accessories
Clazz: NC
Closer Size: Adj. 3 to 6
Closer Type: Surface Mounted Closer
Cold Weather Fluid: Yes
Color: Aluminum
Commercial Residential: Commercial
Country of Origin: Usa
Cover: No
Degree Hold Open: Adjustable
Degree Swing: 90 to 180 Deg.
Dimension: 2-3/8" x 9-3/4" x 2-7/8"
Door Weight: 250 lbs.
Finish: Aluminum
Finish Code: 689
Finish Description: Aluminum Painted
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: Hold Open
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Item Class Description: Adjustable Hold Open Medium Duty Surface Mounted Door Closer with Sex Nuts
Item Type Keyword: Closer
Limited Warranty: 15 Years
Manufacturer Warranty: Limited 15 Year Warranty
Material: Cast Aluminum
Mounting Group: Hydraulic
Mounting Hole Pattern: 3/4" x 9-1/16" Rectangular Mounting
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-01
Pack Height: 3.5"
Pack Height 2: 10.5"
Pack Length: 12.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 218.75 in³
Pack Volume 2: 1539.56 in³
Pack Width: 5"
Pack Width 2: 11.5"
Series: 1601 Series
Ship Weight: 8 lbs.
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Type: Surface
Ul Listing: UL10C
Ul Listing Type: UL / cUL / UL10C Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Upc: 049306083881
