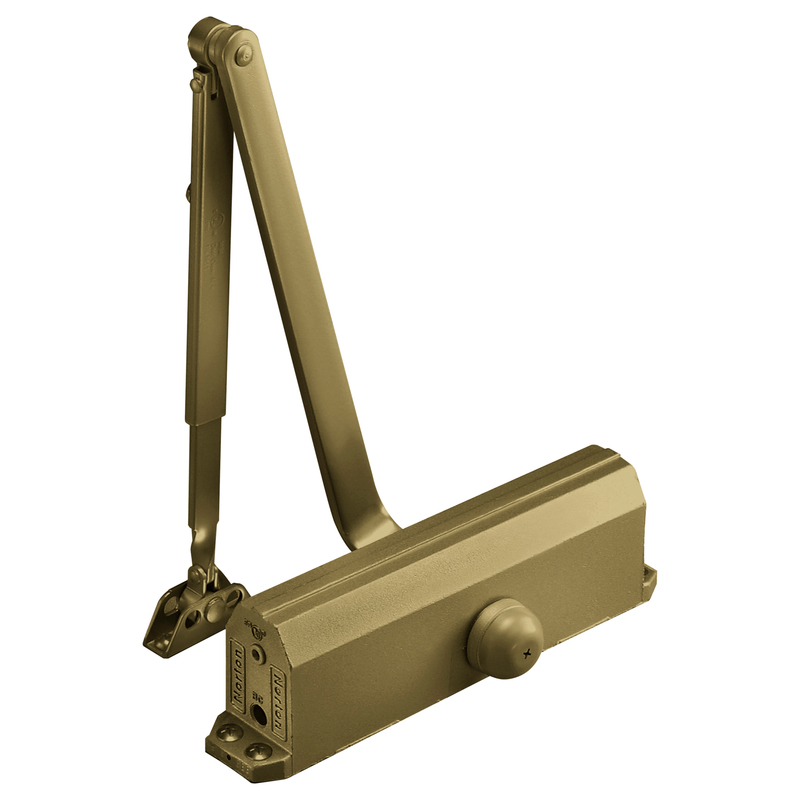

Norton Closers 1601H696 Adjustable Hold Open Medium Duty Surface Mounted Door Closer with Sex Nuts Gold Finish combines durability with innovative design, making it an outstanding choice for various applications. Built to exceed 25 million cycles based on internal testing, this door closer ensures long-lasting performance that professionals can rely on. The non-handed design simplifies installation, allowing for versatile placement on doors. Its advanced rack and pinion mechanism, along with a valve-controlled backcheck, provides smooth operation and enhanced control. The gold finish not only adds a touch of elegance but also ensures corrosion resistance, ideal for high-traffic environments. Constructed from cast aluminum, the Norton 1601H696 is robust yet lightweight. The molded plastic cover enhances its aesthetic appeal while offering additional protection. Designed for pull side mounting, this closer features a mounting hole pattern of 3/4" x 9-1/16" rectangular, facilitating straightforward installation. With adjustable spring sizes ranging from 1 to 6, it accommodates various door weights and sizes, making it a versatile choice for professionals. Backed by a limited 15-year warranty, the Norton 1601H696 is UL/cUL/UL10C listed, ensuring compliance with safety standards. Elevate your door control solutions with this reliable and stylish door closer from Norton.
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability. Norton Door Controls refined the rack and pinion closer and the concept of valve controlled backcheck for hydraulic door closers. Along the way there have been a variety of other innovations, including aluminum alloy body, narrow style, non-handed closers, adjustable backcheck, speed adjustments and special application arms.
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.4, Grade 1 Certified
Application: CM
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Category: Door Closers and Accessories
Clazz: NC
Closer Size: Adj. 1 to 6
Closer Type: Surface Mounted Closer
Cold Weather Fluid: Yes
Color: Gold
Commercial Residential: Commercial
Country of Origin: Usa
Cover: No
Degree Hold Open: Adjustable
Degree Swing: 90-180 Deg.
Dimension: 2-3/8" x 9-3/4" x 2-7/8"
Door Weight: 250 lbs.
Finish: Gold
Finish Code: 696
Finish Description: Satin Brass Painted
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: Hold Open
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Item Class Description: Adjustable Hold Open Medium Duty Surface Mounted Door Closer with Sex Nuts
Item Type Keyword: Closer
Limited Warranty: 15 Years
Manufacturer Warranty: Limited 15 Year Warranty
Material: Cast Aluminum
Mounting Group: Hydraulic
Mounting Hole Pattern: 3/4" x 9-1/16" Rectangular Mounting
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-15
Pack Height: 3.5"
Pack Height 2: 10.5"
Pack Length: 12.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 218.75 in³
Pack Volume 2: 1539.56 in³
Pack Width: 5"
Pack Width 2: 11.5"
Series: 1601 Series
Ship Weight: 8 lbs.
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Type: Surface
Ul Listing: UL10C
Ul Listing Type: UL / cUL / UL10C Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
