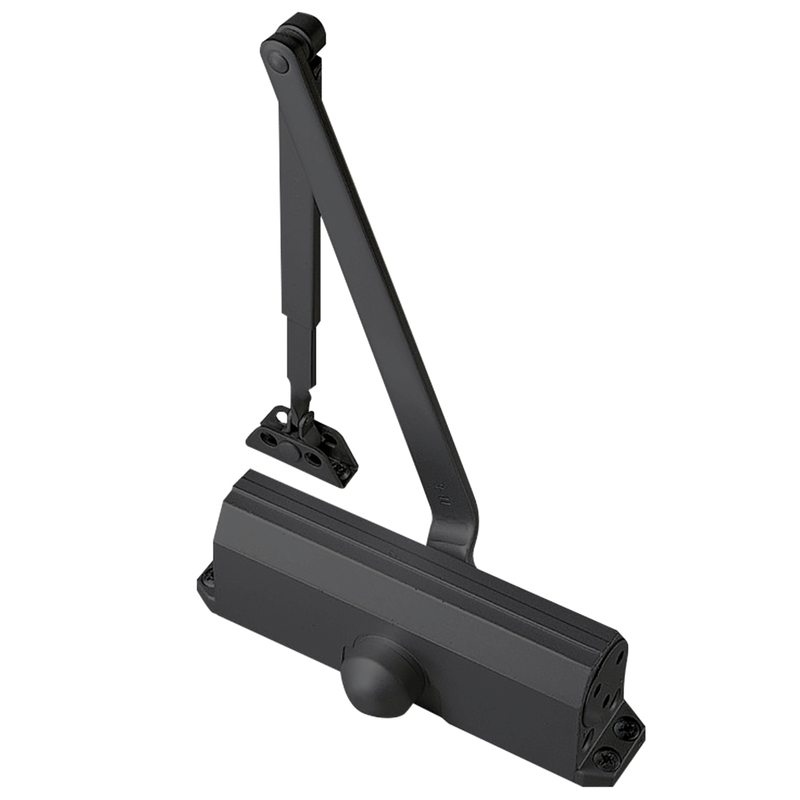

Norton 1604BC 693 Grade 1 Door Closer Tri-Pack

Norton 1604BC 693 Grade 1 Door Closer Tri-Pack offers a reliable solution for both commercial and residential applications. Designed with versatility in mind, this full rack-and-pinion door closer features a robust cast aluminum body that is non-handed, making installation seamless for doors of any hand. With an impressive endurance rating of over 12 million cycles, it is particularly suited for aluminum storefront doors and frames. This model includes adjustable backcheck cushioning, allowing for precise control of door closure speed, which enhances safety by preventing slamming. The closer operates effectively across a wide temperature range, thanks to its specially formulated closer fluid that maintains stable viscosity even in extreme conditions, from high heat to as low as -40°F. The Norton 1604BC is surface-mounted and projects a modest 2-7/8" from the door surface, ensuring a clean aesthetic. Certified as Grade 1 for durability and performance, it also comes with a 15-year limited warranty, affirming its long-term reliability. With its sleek black finish and environmental certification, the Norton 1604BC door closer is the perfect blend of functionality and style for any professional setting.

Grade 1 Door Closer Tri-Pack

Tri-Packed Door Closer, Size 4, Backcheck, Black Painted

The Norton 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition. The 1600 Series Door Closers exceed 12 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed.

The 1600BC Series is designed to fit almost any application and are a top choice of engineers.

The 1601BC Series is ideal for use with aluminum storefront doors and frames. These closers have a history of proven quality and tradition.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door.
• Closers shall be non-handed to permit installation of doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall be sized for each door.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed.
• [Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.]
• [Closers shall have adjustable delayed action closing controlled by a hex key adjusted valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% (+/-7-1/2%) power adjustment
• Environmental Product Declaration (EPD) certified

Resources

• 1600 Closer Exceeds 12 Million Cycles
• 1600 Coupon and Telephone Booth Closers Discontinued
• 1600 Delayed Action Adjustment Instruction Sheet
• 1600 Fixed Size 2, 5 & 6 Closers Discontinued
• 1600 Surface Closer
• 1600BC Series Closers;1601 Series Closers Cut Sheet
• 1600BC Tri-Style
• 1600BCH Tri-Style
• 1600SS, Corrosion Resistant, Non-Hold Open Only
• Norton Rixson 1600 Series Sell Sheet
• PR1600BC, Parallel Rigid Arm, Non-Hold Open or Hold Open
• UNI1600BC, Unitrol
• UNIJ1600BC, Unitrol
