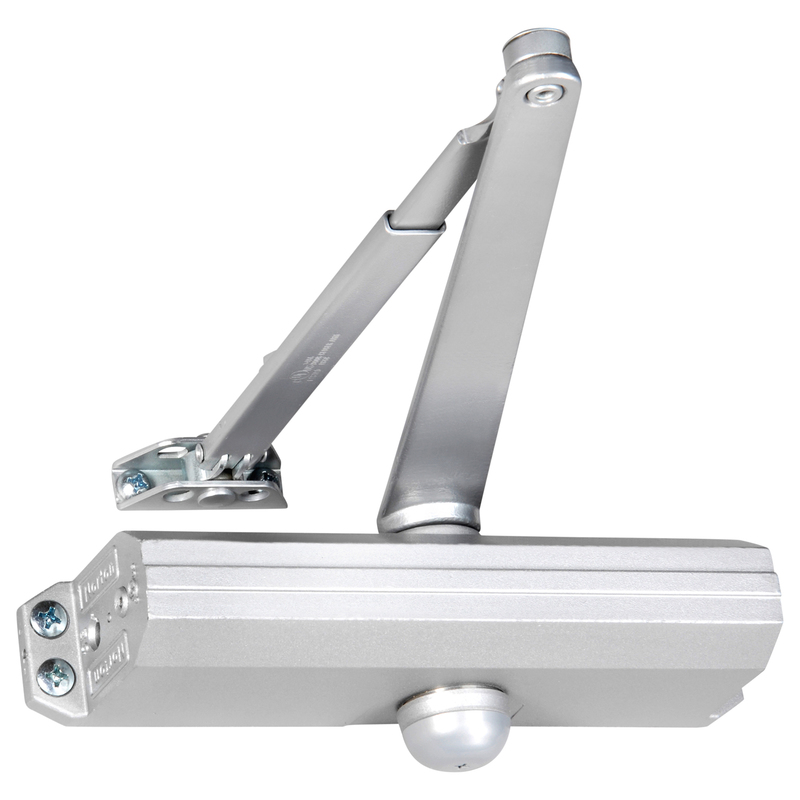

Norton 1681 689 Grade 1 Low Profile Door Closer

Norton 1681 689 Grade 1 Low Profile Closer is engineered for durability and reliability in high-traffic environments. This Grade 1 tri-mount surface closer features a pull-side, double lever arm design, allowing for a maximum 180-degree swing. With adjustable sizes ranging from 1 to 6, it seamlessly accommodates various door weights up to 250 lbs, making it an ideal choice for aluminum storefronts and similar applications. Constructed from a heavy-duty, one-piece cast aluminum body, this closer promises longevity and robust performance. Its non-handed design simplifies installation, while the adjustable back-check and independent valves for sweep and latch control ensure precise operation tailored to specific needs. The Norton 1681 also offers a wide variety of arms, customizable as hold-open or non-hold open, adapting to any environment with ease. Certified to ANSI/BHMA A156.4, Grade 1 standards, the Norton 1681 689 Low Profile Closer is a trusted solution for both commercial and residential applications. With a limited 15-year warranty, you can be confident in your investment, knowing it’s built to withstand the rigors of daily use while maintaining functionality and style.

Grade 1 Low Profile Closer

Grade 1 Tri Mount Surface Closer, Pull Side, Double Lever Arm Low Profile, 180 Deg. Swing, Adjustable Size 1-6, Aluminum Painted Finish, Non-Handed

The Norton 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition. The 1600 Series Door Closers exceed 12 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed.

Fully adjustable door closer for aluminum storefronts and other medium traffic applications.

Norton's 1601 Series door closers offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.

Features:

• Heavy duty, one-piece cast aluminum body
• Available adjustable 1-6 and fixed spring sizes 3 and 4 units
• Full variety of arms available as hold open or non- hold open
• Maximum Degree of Swing: 180°, trim permitting
• Non-handed
• 2-7/8" projection
• Plastic cover optional

Benefits:

• Aluminum alloy closer body provides for long life
• Independent sweep, latch and back-check intensity valves ensure positive control
• Wide variety of arms and applications for most any environment
• Features a quick-adjust slide arm for quick installation and adjustment

Resources

• 1600 Closer Exceeds 12 Million Cycles
• 1600 Delayed Action Adjustment Instruction Sheet
• 1600 Series Door Closer - Environmental Product Declaration (EPD)
• 1600 Surface Closer
• 1600BC Series Closers;1601 Series Closers Cut Sheet
• 1600BC Tri-Style
• 1600BCH Tri-Style
• 1600SS, Corrosion Resistant, Non-Hold Open Only
• Norton Rixson 1600 Series Sell Sheet
• PR1600BC, Parallel Rigid Arm, Non-Hold Open or Hold Open
• UNI1600BC, Unitrol
• UNIJ1600BC, Unitrol
