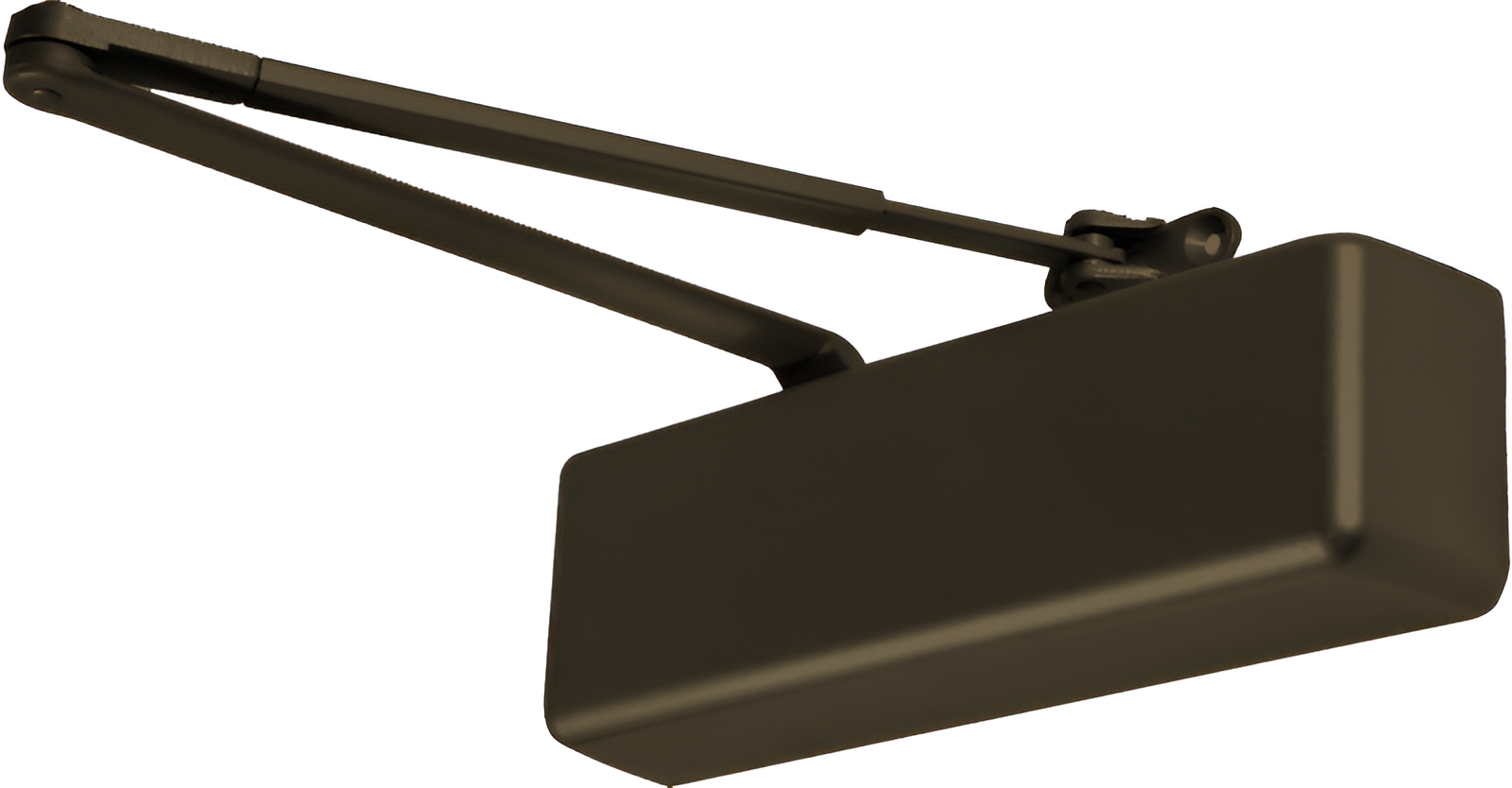

Norton 410-TPN-690 ADA Adjustable Surface Door Closer, Sizes 1-6, Non-Hold Open, Dark Bronze

Norton 410-TPN-690 ADA Surface Door Closer combines robust design with versatile functionality, making it an ideal choice for various commercial applications, including retail, office, and government facilities. Constructed from durable cast iron, this closer ensures a long-lasting performance that meets ANSI/BHMA Grade 1 standards. This model offers adjustable spring sizes from 1 to 6, allowing for customization based on door weight and traffic conditions. With a maximum door weight capacity of 250 lbs and a traffic rating suited for moderate use, the Norton 410 is both reliable and efficient. The tri-packed arm system supports regular, parallel, and top jamb mounting, providing flexibility for different installation needs. Key features include adjustable backcheck, closing, and latch speed settings, ensuring smooth operation. The non-handed design simplifies installation on interior or exterior doors, while the included sleeve nuts and bolts streamline the setup process. The 690 Dark Bronze powder coat finish not only enhances the aesthetic appeal but also offers added durability against wear. With a 10-year limited warranty, the Norton 410-TPN-690 is a cost-effective and practical solution for those seeking a dependable door closer that delivers on both performance and style.

ADA Surface Door Closer, Adjustable Spring Sizes 1-6, Full Cover, Tri-Packed Arm (Regular, Parallel, Top Jamb Mounting), Non-Hold Open, Grade 1, UL, 690 Dark Bronze Powder Coat

The 410 series cast iron door closer provides an attractive retrofit solution for retail, office, government and other commercial facilities. Heavy-duty and hold open arms, along with adjustable spring size, backcheck, closing and latch speed, provides a flexible and economical closer that you can trust. The 410 Series is certified to ANSI/BHMA Grade 1 requirements for a long life of reliable performance.

Features:

• Cast iron closer body
• Adjustable spring sizes 1-6
• Retrofit for LCN 4040XP
• Hold open and heavy duty arms available
• Tri-packed
• Non-handed
• Interior or exterior doors
• Adjustments for backcheck, closing, and latch speed
• Narrow frame and narrow top rail drop plates available
• Sleeve nuts & bolts included
• Available fasteners: sex nuts & thru-bolt grommet nuts
• Closer footprint: 2-1/4" x 5"
• Retrofit solution for existing installations
• Cost-effective alternative for market
• One package covers regular, top jamb, and parallel arm mounting
• Arm configurations meet broad range of applications

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate traffic
• Warranty: 10-year limited warranty
• Certifications: ANSI/BHMA A117.1

Type of Arm:

• HDN: Heavy-Duty Parallel Arm
• Push-side application
• Stop is removable
• TPN: Regular Arm
• Pull-side application
• Closer mounted on the door
• TPN: Parallel Arm
• Push-side application
• Closer mounted on the door
• TPN: Top Jamb
• Push-side application; closer mounted on the frame
• Minimum top rail = 2-1/4" (57mm)
• Maximum frame reveal = 2-3/4" (70mm)
• CPS: CloserPlus arm
• Push-side application
• Buffer spring provides greater protection at the end of door opening cycle
• Spring is removable

Finishes:

• 689/SP28 - Aluminum
• 690/US20 - Dark bronze
• BSP - Black suede powder coat

Resources

• Cut Sheet
