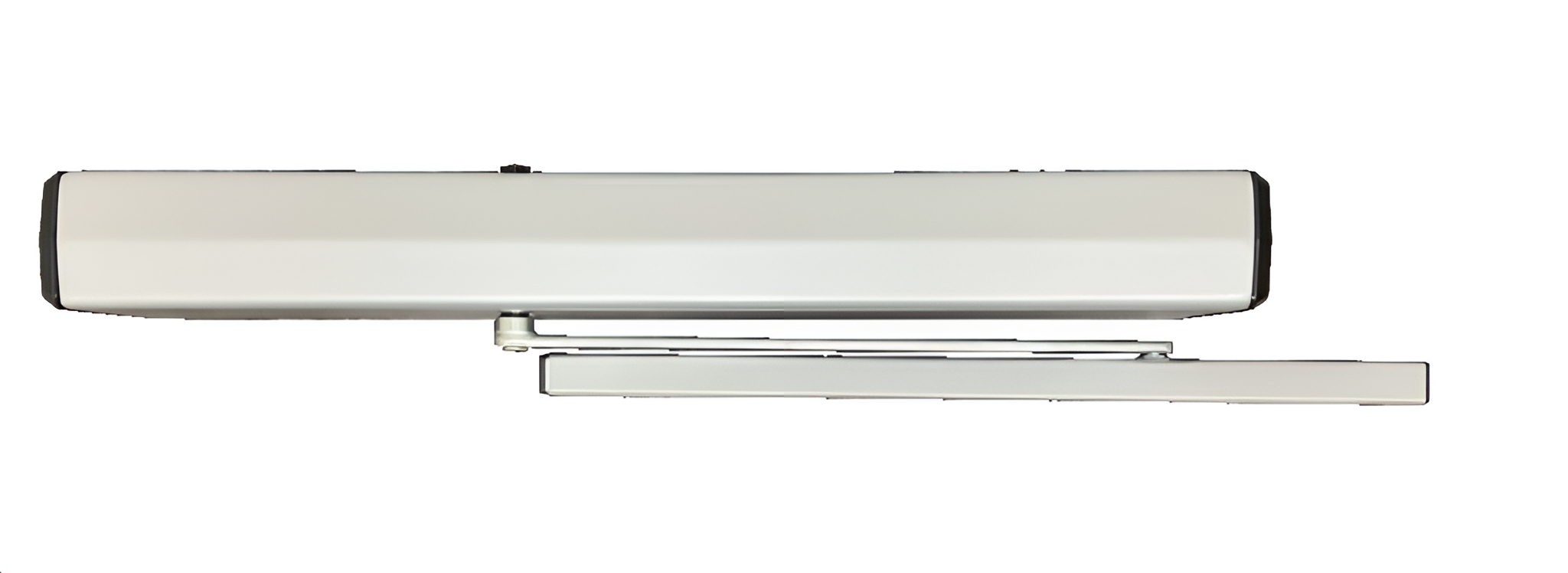

Norton 5211-689 ADA Low Energy Operator, Slim Profile, Rigid Arm, 120 Max Swing, 120 VAC

Norton 5211-689 ADA Low Energy Operator offers an ideal solution for enhancing accessibility in commercial settings while ensuring user convenience. Designed for pull-side installation, this electromechanical operator is perfect for light to moderate duty applications, supporting door sizes up to 200 lbs. and 48 inches wide. The slim profile of the Norton 5211-689 not only adds an aesthetic appeal but also integrates seamlessly into various environments. Its non-handed design allows for versatile installation options, whether mounted on the push or pull side. This operator can be activated through various methods including push buttons, hands-free sensors, or radio frequency devices, facilitating a touchless experience. Equipped with Wi-Fi programming, the operator boasts a secure, password-protected hot spot, enabling straightforward setup without the need for additional IT infrastructure. Users can monitor status and make adjustments easily, without removing the cover. The adjustable opening force and closing power ensure tailored operation to meet specific needs. With a 2-year limited warranty and modular installation that allows for a one-person setup, the Norton 5211-689 ADA Low Energy Operator is an exceptional choice for enhancing door accessibility while ensuring reliable performance and functionality.

ADA Low Energy Operator, Pull Side, Slim Profile, Light to Moderate Duty, Rigid Arm and Slide Track Arm, 120 Degree Max Swing, Non-Handed, 120 VAC Input, UL, 689/SP28 Aluminum Powder Coat

The 5200 series is an electromechanical low energy operator offering functionality and superior user experience. The 5200 series converts interior, non-fire rated doors easily while providing a simple way to achieve touchless environments. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Complete with Wi-Fi programming for easy installation and setup.

Features:

• Push or pull side mounting
• Non-handed
• Activated by push button, hands-free, and radio frequency (RF) devices
• Maximum door size: 200 lbs. at 48" wide
• Aesthetically pleasing, slim profile
• Modular design
• Adjustable opening force
• Adjustable closing power
• 2 year limited warranty
• Power cord option
• Operator is a secure, password protected Wi-Fi hot spot - no connection to building’s IT required
• Simple setup; no app required
• View status and make adjustments without removing cover
• Built-in logic to support single use restroom applications - no external relay boards, logic modules, position switches required
• Modular installation - one-person install
• Easy set up and adjustments
• Traffic Rating: Low traffic, moderate traffic

Models:

• 5211:
• Hinge (pull) side of door
• Rigid arm and slide track
• 5231:
• Stop (push) side of door
• Standard-duty double lever arm

Finishes:

• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
