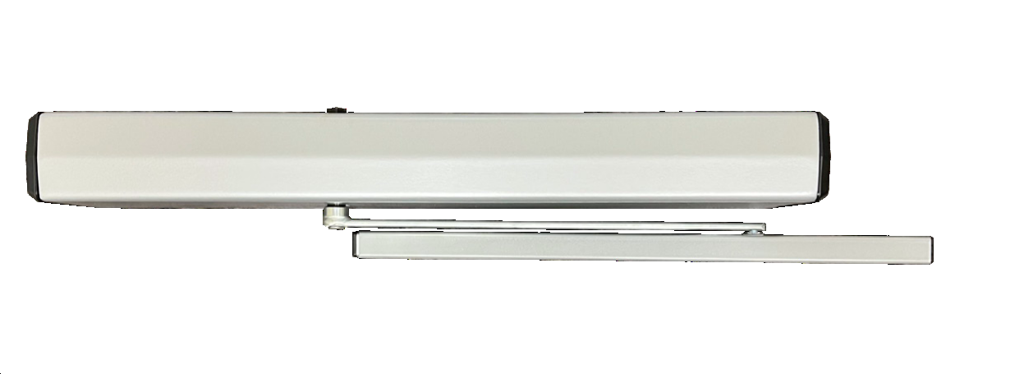

Norton 5241-689 ADA Low Energy Push/Pull Operator, Slim Profile, 130 Max Swing, Non-Handed

Norton 5241-689 ADA Low Energy Operator combines advanced functionality with a sleek, slim profile, designed for both push and pull mounting. This electromechanical operator is ideal for light to moderate duty applications, accommodating doors up to 200 lbs. and 48 inches wide. Its non-handed design simplifies installation, making it suitable for various door configurations. The 5241-689 features a push side double lever arm and a pull side standard duty arm, offering versatility in activation methods. Users can operate the door manually or utilize push buttons, hands-free devices, or radio frequency controls for a touchless experience. The operator also includes Wi-Fi programming, allowing for straightforward setup without needing a dedicated app or connection to the building’s IT. With adjustable opening force and closing power, this unit ensures a customizable user experience. It is equipped with built-in logic for applications such as single-use restrooms, eliminating the need for additional relay boards or position switches. The modular design allows for a one-person installation, making it easy to set up and adjust as needed. Finished in a durable aluminum powder coat, the Norton 5241-689 ADA Low Energy Operator is a reliable and efficient solution for enhancing accessibility while maintaining aesthetic appeal.

ADA Low Energy Operator, Push/Pull, Slim Profile, Light to Moderate Duty, Push Side Double Lever Arm, Pull Side Standard Duty Arm and Slide Track, 130 Degree Max Swing, Non-Handed, 120 VAC Input, UL, 689/SP28 Aluminum Powder Coat

The 5200 series is an electromechanical low energy operator offering functionality and superior user experience. The 5200 series converts interior, non-fire rated doors easily while providing a simple way to achieve touchless environments. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Complete with Wi-Fi programming for easy installation and setup.

Features:

• Push or pull side mounting
• Non-handed
• Activated by push button, hands-free, and radio frequency (RF) devices
• Maximum door size: 200 lbs. at 48" wide
• Aesthetically pleasing, slim profile
• Modular design
• Adjustable opening force
• Adjustable closing power
• 2 year limited warranty
• Power cord option
• Operator is a secure, password protected Wi-Fi hot spot - no connection to building’s IT required
• Simple setup; no app required
• View status and make adjustments without removing cover
• Built-in logic to support single use restroom applications - no external relay boards, logic modules, position switches required
• Modular installation - one-person install
• Easy set up and adjustments
• Traffic Rating: Low traffic, moderate traffic

Models:

• 5211:
• Hinge (pull) side of door
• Rigid arm and slide track
• 5231:
• Stop (push) side of door
• Standard-duty double lever arm
• 5241:
• Operator
• Cover
• Push and pull arms

Finishes:

• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
